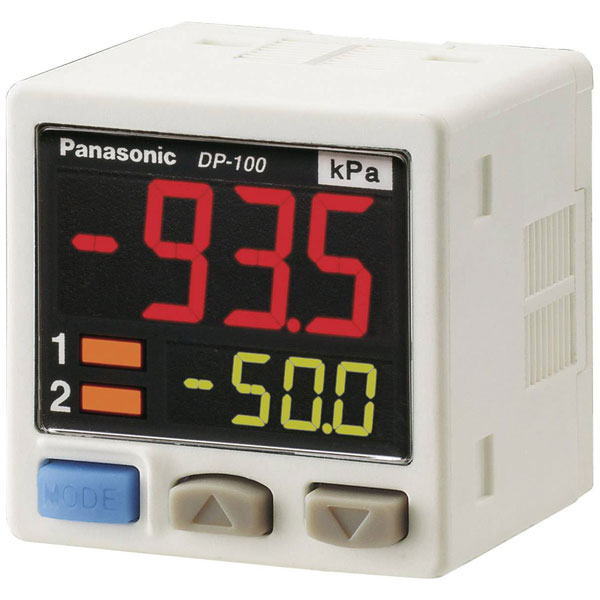

Panasonic DP-101-EP Pressure Sensor 1 bar Mini Design 3-Colour Display

The Panasonic DP-101-E-P pressure sensor is a compact device, measuring 42.5 x 30 x 30 mm, capable of detecting pressures from -1 bar to 1 bar. It features an open-ended cable for easy integration into various systems. This air pressure sensor is typically used in applications requiring precise pressure monitoring and force detection.

Type	Pressure sensor
Connector	Cable, open end
Dim	(L x W x H) 42.5 x 30 x 30 mm
Height	30mm
IP Rating	IP40
Length	42.5mm
Max. operating voltage	24V DC
Maximum Temperature	+55°C
Min. operating voltage	12V DC
Min. temperature	-10°C
Model	Relative pressure
Operating Voltage	12 - 24 V DC
Outputs	PNP
Pressure reading range	-1 bar up to 1 bar
Pressure reading range (max.)	1bar
Pressure reading range (min.)	-1bar
Width	30mm
