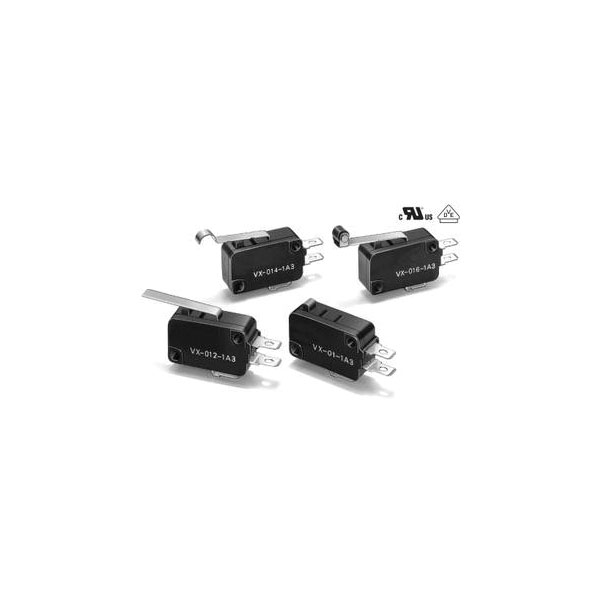

Omron VX-53-1A3 Microswitch SPDT 5A 30VDC long Hinge Lever Actuator

The Omron VX-53-1A3 is a microswitch designed for applications requiring a compact and reliable switching solution. It supports a maximum of 30 V DC and 5 A, making it suitable for low power devices and circuits. Typically used in consumer electronics and industrial machinery, this switch offers durable performance in demanding environments.

Type	Microswitch
Contact Configuration	SPDT
Switch Function	Steel lever (straight)
Current Rating (Amps)	5A
Voltage Rating - DC	30
Actuator Type	Long Hinge Lever
Connection	Solder tag
Contact AC Voltage	250V ac
Contact Type	1 change-over
Engineering Part No	VX531A3
Engineering Series No	VX
Hazardous Area Certification	No
IP Rating	IP40
Maximum Operating Temperature	80°C
Mechanical Life	50000000Operations
Microswitch Type	Miniature
Minimum Operating Temperature	25°C
Operating Force	0.2N
Packaging Type	Bag
Product Type	Micro Switch
Series	V
Standards/Approvals	RoHS
Switch Contact Current	5A
Switch position	1 x On/(On)
Switching Voltage	30V DC
Terminal Type	Solder
