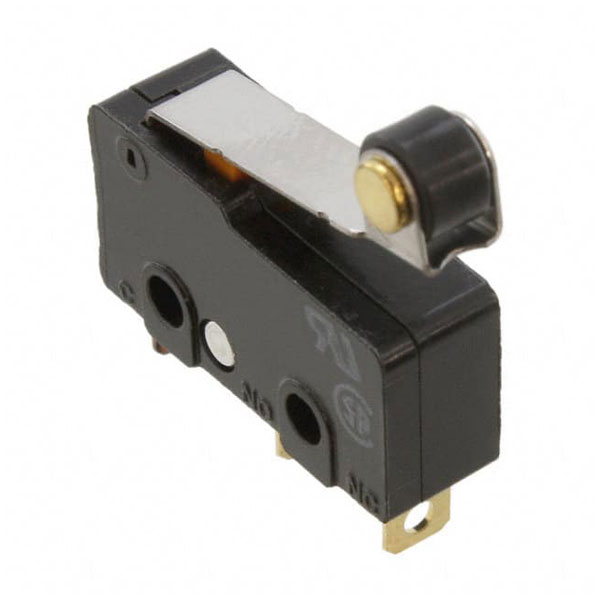

Omron SS-01GL2-F Subminiature Basic Switch SPDT 5A 125VAC Lever Actuator

Omron
Order Code:

15-5432

Brand: Omron MPN: SS-01GL2-F
Qty Unit Price (Ex VAT)
100+ £1.53
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 100
Available to back orderBack order, lead time 14 days

The Omron SS-01GL2-F is a subminiature basic switch featuring an SPDT configuration.

It has a current rating of 5A at 125VAC and is equipped with a lever actuator.

This switch is known for its compact design and reliable performance.

Typical applications include consumer electronics and industrial control equipment.


Type Microswitch
Contact Configuration SPDT
Actuator Type Roller Lever
Contact DC Voltage 30V dc
Depth 6.4mm
Hazardous Area Certification No
IP Rating IP40
Length 19.8mm
Maximum Operating Temperature 85°C
Mechanical Life 30000000Operations
Microswitch Type Subminiature
Minimum Operating Temperature 25°C
Operating Force 0.16N
Product Type Micro Switch
Series SS
Standards/Approvals RoHS
Switch Contact Current 100mA
Terminal Type Solder
