Omron G3VM-61QV2H(TR05) SSR Relay SPST-NO 1A 0V-60V

Omron
Order Code:

15-5839

Brand: Omron MPN: G3VM-61QV2H(TR05)
Qty Unit Price (Ex VAT)
500+ £10.17
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 500
500 in stock, despatched in 5 working days

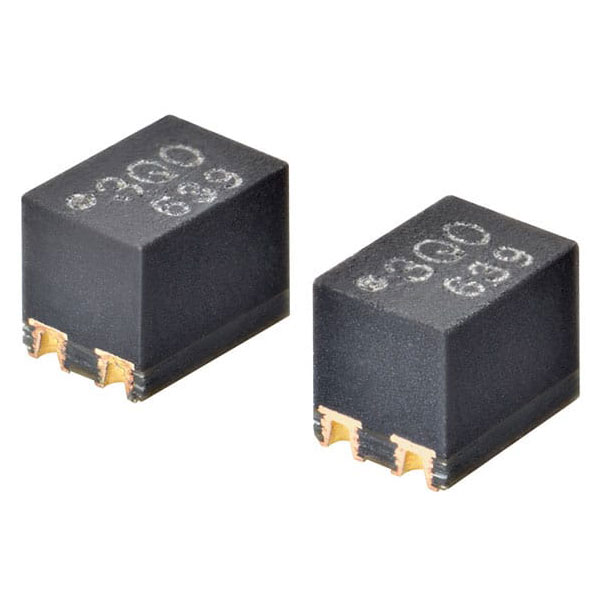

The Omron G3VM-61QV2H(TR05) is a solid-state relay with a SPST-NO contact configuration.

It has a current rating of 1A and operates within a voltage range of 0V to 60V.

This relay is compact and ideal for high-density printed circuit boards.

Typical applications include signal switching in test equipment and telecommunications systems.


Type Solid State Relay
Contact Configuration SPST
Capacitance 80pF
Maximum Load Current 1000mA
Maximum Load Voltage 60V
Maximum Operating Temperature 125°C
Minimum Load Voltage 60V
Minimum Operating Temperature 40°C
Mount Type Surface
Off State Leakage Current 1µA
Output Type MOSFET
Product Type Solid State Relay
Series 3V
Standards/Approvals RoHS
Switching function AC/DC Switching
Terminal Type PCB Terminal
