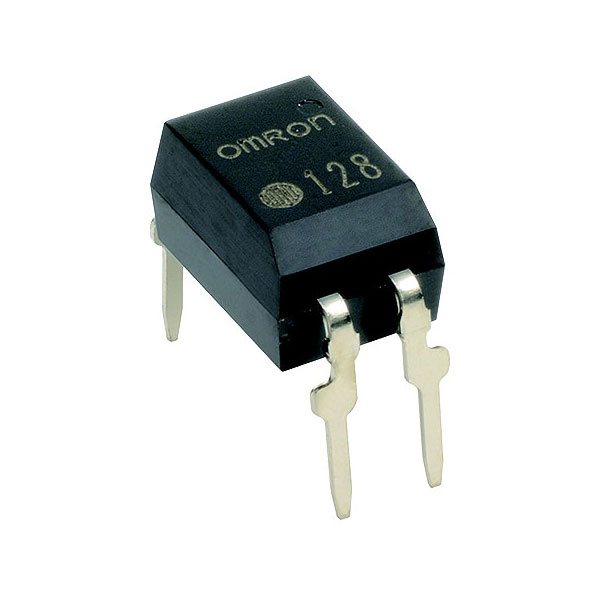

Omron G3VM-61AR1 MOS FET High Current Compact Design

Omron
Order Code:

15-5852

Brand: Omron MPN: G3VM-61AR1
Qty Unit Price (Ex VAT)
25+ £8.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 25
177 in stock, despatched in 5 working days

The Omron G3VM-61AR1 is a high current MOSFET with a compact design.

It offers low on-resistance and reliable performance in a small package.

Typical applications include use in telecommunications and measurement equipment.

This component is ideal for circuits requiring efficient switching and minimal power loss.


Type Solid State Relay
Contact Configuration SPST
Length 6.4mm
Width 4.58mm
Height 3.65mm
Capacitance 250pF
Maximum Control Voltage 1.8V
Maximum Load Current 3A
Maximum Load Voltage 60V
Maximum Operating Temperature 110°C
Minimum Control Voltage 1.5V
Minimum Load Voltage 0V
Minimum Operating Temperature 40°C
Mount Type PCB
Off State Leakage Current 1µA
On State Resistance 100mO
Output Type MOSFET
Package type DIP-4
Product Type Solid State Relay
Series 3V
Standards/Approvals RoHS, UL
Switching function AC/DC Switching
Terminal Type PCB Terminal
