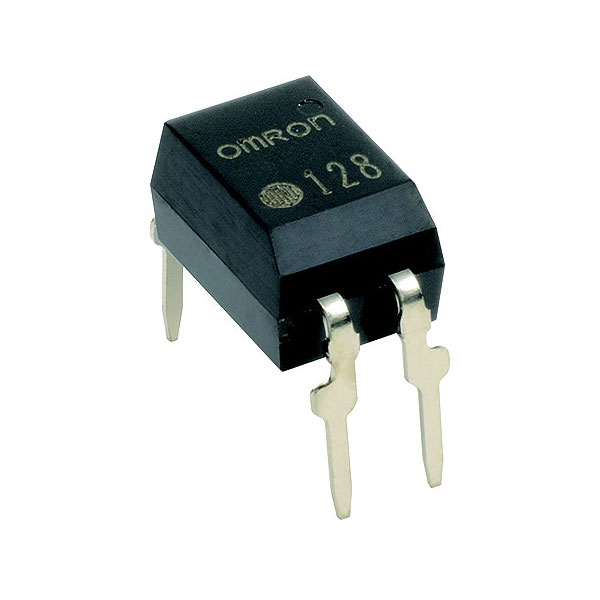

Omron G3VM-401A Relay MOSFET TH 200V 120mA 1-Channel SPST-NO

Omron
Order Code:

15-5900

Brand: Omron MPN: G3VM-401A
Qty Unit Price (Ex VAT)
70+ £2.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 70
98 in stock, despatched in 5 working days

The Omron G3VM-401A relay is a MOSFET-based device designed to handle voltages up to 200V and currents of 120mA.

It is a single-channel SPST-NO relay, suitable for switching applications.

The product is known for its reliable performance in automation and signal relay applications.

It is widely used in areas such as telecommunications and test equipment.


Type Solid State Relay
Contact Configuration SPST
Length 4.6mm
Width 4.58mm
Height 3.7mm
Capacitance 30pF
Maximum Control Voltage 1.3V
Maximum Load Current 0.12A
Maximum Load Voltage 400V ac
Maximum Operating Temperature 85°C
Minimum Control Voltage 1V
Minimum Load Voltage 0V ac
Minimum Operating Temperature 40°C
Mount Type Surface, PCB
Off State Leakage Current 50mA
On State Resistance 35O
Output Type MOSFET
Package type 4-Pin
Product Type Solid State Relay
Series 3V
Standards/Approvals RoHS
Terminal Type PCB Terminal
