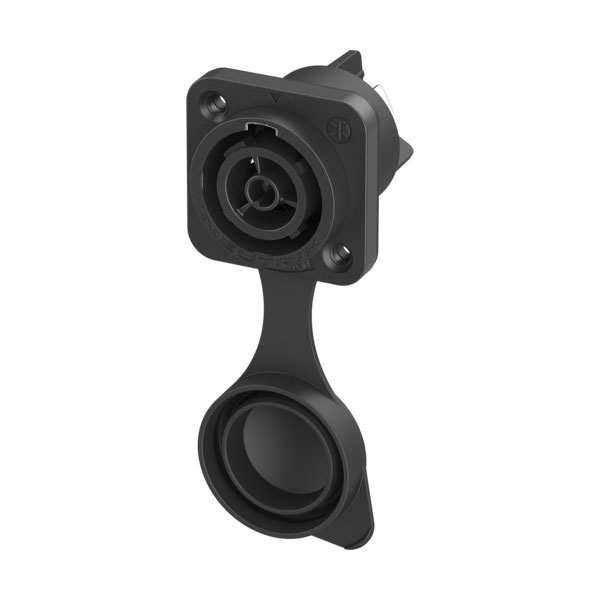

The Neutrik NAC3FPX-TRUE1 appliance outlet connector with 1/4-inch flat tab terminals from the powerCON TRUE1 airtight range is a true mains outlet connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to the premium powerCON-TRUE1 range. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight is the ideal choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions.
The powerCON TRUE1 connectors are designed with breaking capacity, allowing them to be connected or disconnected under load or live.
- Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
- Heavy duty sealed power connector for harsh and demanding environments
- Uses high impact UV-resistant materials Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- IP65, IP66 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity
- Easy and reliable twist lock system
- Manufacturer's part: NAC3FPX-TRUE1
| Colour |
Black |
| Contact Finish |
Silver plated |
| Contact Termination |
Flat Tab |
| Pin/Socket |
Socket |
| Type |
Chassis connector |
| Wire Gauge (AWG) |
12 |
| Wire Gauge (mm²) |
2.5mm² |
