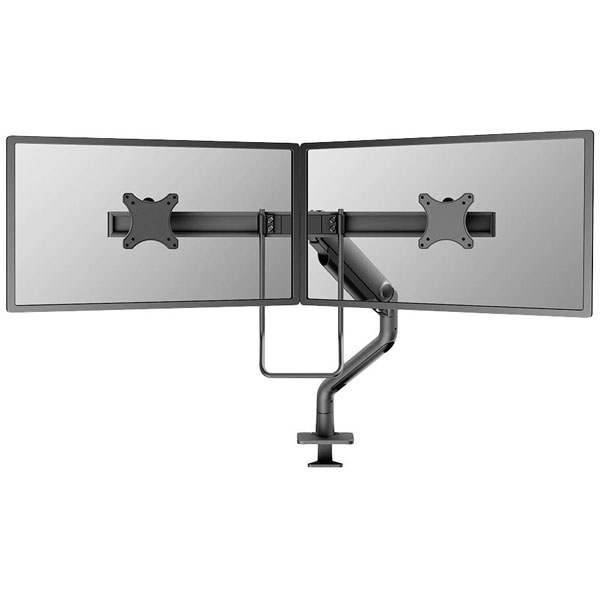

Neomounts DS75S-950BL2 is a versatile monitor desk mount designed to accommodate dual displays ranging from 17 to 27 inches, offering substantial structural support and flexibility in positioning. Engineered in a sleek black finish, the mount is tiltable and swivelling, enabling precise adjustment and optimal viewing angles. This mount is suited for environments requiring dual monitor setups, such as office workstations, control centres, and design studios, where ergonomic considerations and efficient space utilisation are critical. Featuring height-adjustability, it allows users to customise the monitor's vertical positioning to promote better posture and reduce neck strain. This product exemplifies robust engineering and is compatible with standard VESA mounting patterns, ensuring broad compatibility with various monitor brands and models.
| Suitable For |
43,2 cm (17") - 68,6 cm (27") |
| Add-on displays |
2 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Clamp mount desk thickness (max) |
5cm |
| Colour |
Black |
| Country of origin |
China |
| Depth |
739mm |
| Depth adjustment range |
173 - 710mm |
| Desk thickness (max) |
5.5cm |
| Desk thickness (min) |
1cm |
| Dimensions |
(W x H x D) 833 x 1085 x 739 mm |
| Distance to the wall (max) |
74.1cm |
| Distance to the wall (min) |
20.4cm |
| Easy to install |
Yes |
| Grommet mount desk thickness (max) |
5.5cm |
| Harmonized System (HS) code |
7616991099 |
| Height |
1085mm |
| Height adjustment |
Yes |
| Height adjustment range |
191 - 527mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Aluminium |
| Master (outer) case gross weight |
14.9kg |
| Master (outer) case height |
905mm |
| Master (outer) case length |
260mm |
| Master (outer) case net weight |
11.1kg |
| Master (outer) case width |
240mm |
| Material (details) |
Aluminium |
| Max. load Capacity |
8kg |
| Maximum screen size |
81.3 cm (32) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
8kg |
| Maximum weight capacity (per display) |
8kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1kg |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of displays supported |
2 |
| Package depth |
120mm |
| Package height |
887mm |
| Package net weight |
7.1kg |
| Package Type |
Box |
| Package weight |
7.1kg |
| Package width |
222mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
No |
| Product colour |
Black |
| Products per master (outer) case |
2 pc(s) |
| Products per pallet (EU) |
36 pc(s) |
| Rotating |
Yes |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-60 - 60° |
| Tilt Range (bottom) |
-60° |
| Tilt Range (top) |
60° |
| Type |
Monitor desk mount |
| Warranty period |
10 year(s) |
| Weight |
7.1 |
| Width |
833mm |
| Width adjustment |
107.4cm |
| Width adjustment range |
0 - 1074mm |
