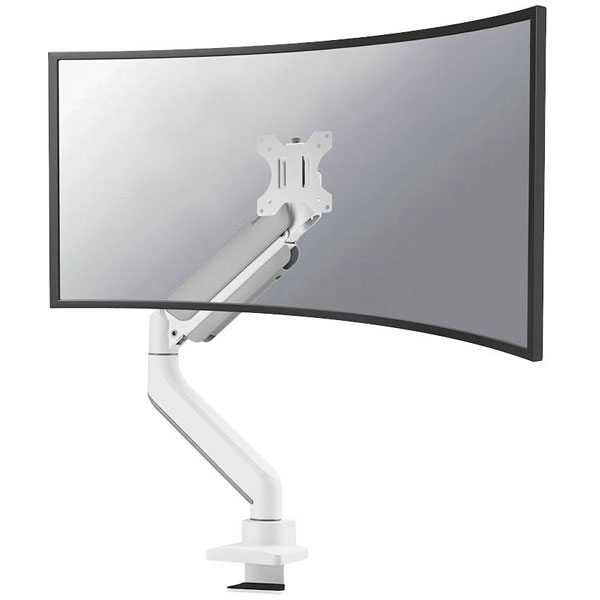

Neomounts DS70PLUS-450WH1 is a versatile monitor desk mount specifically designed for displays ranging in size from 17 inches (43.2 cm) to 49 inches (124.5 cm). Constructed in a pristine white finish, this mount offers tiltable and swivelling functions, providing excellent adjustment capabilities to enhance ergonomics and viewing comfort. Additionally, the DS70PLUS-450WH1 is height-adjustable, accompanied by a robust construction that ensures secure support for a wide range of monitor sizes, making it ideal for engineering workstations, design studios, and control rooms where precise screen positioning is crucial. The desk mount integrates seamlessly into professional environments, allowing for flexible monitor setups without the need for additional tools or complex installation processes.
| Type |
Monitor desk mount |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Colour |
White |
| Country of origin |
China |
| Depth |
568mm |
| Depth adjustment range |
54 - 511 mm |
| Desk thickness (max) |
4.5 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 120 x 653 x 568 mm |
| Distance to the wall (max) |
56.8 cm |
| Distance to the wall (min) |
10.8 cm |
| Harmonized System (HS) code |
7326909890 |
| Height |
653mm |
| Height adjustment |
Yes |
| Height adjustment range |
261 - 555 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Steel |
| Master (outer) case gross weight |
20.5 kg |
| Master (outer) case height |
580mm |
| Master (outer) case length |
275mm |
| Master (outer) case net weight |
16 kg |
| Master (outer) case width |
460mm |
| Max. load Capacity |
18kg |
| Maximum screen size |
124.5 cm (49) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
18 kg |
| Maximum weight capacity (per curved/ultra-wide display) |
14 kg |
| Maximum weight capacity (per display) |
18 kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1 kg |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of displays supported |
1 |
| Package depth |
127mm |
| Package height |
445mm |
| Package net weight |
5.1 kg |
| Package type |
Box |
| Package weight |
5.1 kg |
| Package width |
280mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
No |
| Product colour |
White |
| Products per master (outer) case |
4 pc(s) |
| Products per pallet (EU) |
64 pc(s) |
| Quantity per pack |
1 pc(s) |
| Rotating |
Yes |
| Suitable For |
43,2 cm (17") - 124,5 cm (49") |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt Range (bottom) |
-45° |
| Tilt Range (top) |
45° |
| Weight |
4.351 |
| Width |
120mm |
| Width adjustment |
92cm |
| Width adjustment range |
0 - 920 mm |
