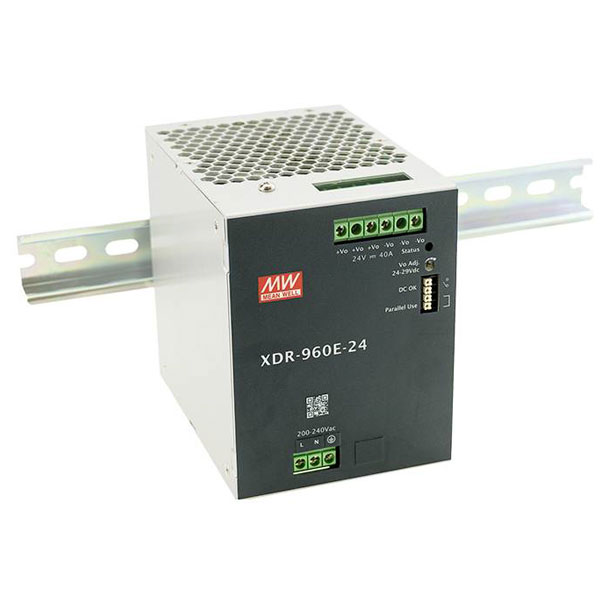

MW Mean Well XDR-960E-24 Open & DIN Power Supply Units 960W 24V 40A

Mean Well XDR-960E-24 is a high-performance open and DIN rail power supply unit engineered for industrial applications demanding reliable power delivery. With a power output of 960 watts, this unit provides a stable 24V DC output at 40 amps, making it suitable for heavy-duty equipment and automation systems. Designed for DIN rail mounting, the XDR-960E-24 is an optimal choice for modular installation in control cabinets, offering ease of maintenance and efficient utilisation of space. This power supply is ideally utilised in environments that require dependable power such as manufacturing, processing plants, and various industrial automation settings.

Type	Rail mounted PSU (DIN)
Number of Outputs	1
Power Rating	960W
Content	1
Depth	132mm
Dimensions (L x W x H)	132 x 96 x 125.2mm
Efficiency	94.5%
Height	125.2mm
IP Rating	Protection class I
Max. output current 1	40A
Max. temperature	-40°C
Maximum input voltage	264V
Maximum Operating Temperature	+70°C
Maximum Temperature	-40°C
Min. temperature	+70°C
Minimum Input Voltage	180V
Minimum Operating Temperature	+70°C
Nominal value output voltage 1	24V
Operating temperature (min.)	-40°C
Output current (max.) - rounded	40A
Output voltage (max.)	24V
Power	960W
Product Type	Rail mounted PSU (DIN)
Type of electric connection	Screw terminal
Width	96mm
