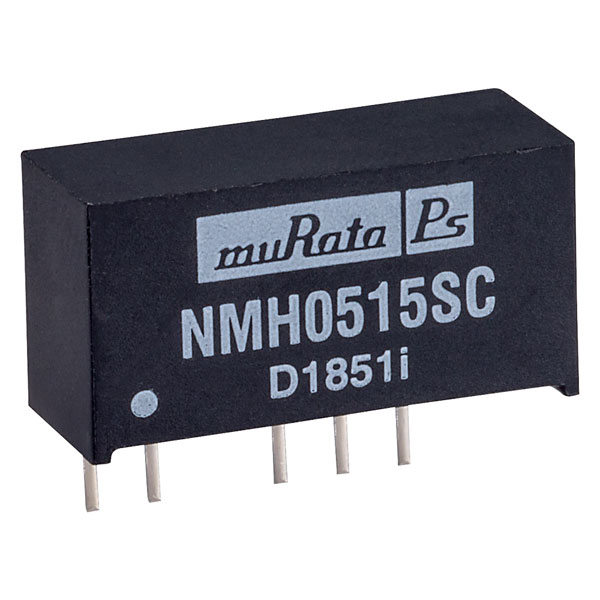

Murata NMH0515SC 5V In ±15V Out Isolated 2W Dual Output SIP DC/DC Converter

This isolated 2W dual output DC/DC converter from Murata Power Solutions has a nominal input voltage of 5V and an output voltage of ±15V. It can be used to match power supplies to device voltage requirements.

The NMH0515SC is ideally suited for providing dual-rail supplies on single rail boards with the added benefit of galvanic isolation to reduce circuit noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 2W.

• Connection: Solder pins
• Height: 10mm
• Length: 19.5mm
• Width: 7.5mm
• Efficiency (max.): 84%
• Max. input voltage: 5.5V DC
• Max. output current: 67mA
• Min. input voltage: 4.5V DC
• No. of outputs: 2
• Nominal voltage: 5V DC
• Operating temperature (max.): 85°C
• Operating temperature (min.): -40°C
• Output voltage: 15V DC, -15V DC
• Power: 2W
• Package style SIP
• Manufacturer's part: NMH0515SC
