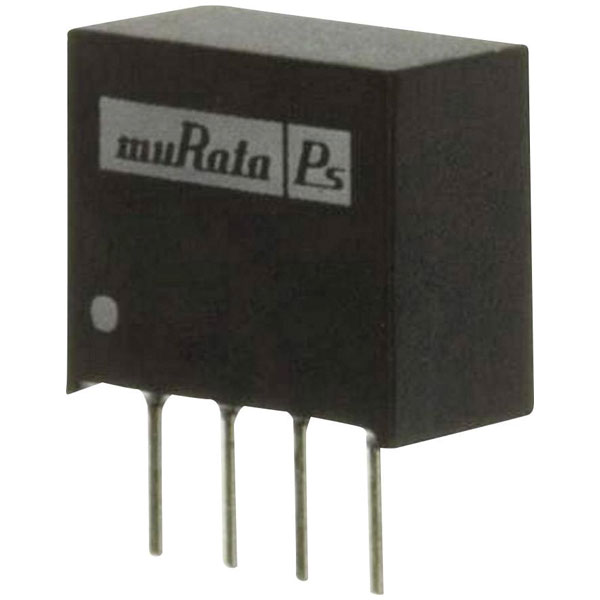

Murata NKE1212SC DC/DC Converter 12V 83mA 1W 1 Output

Image Representative of Range

Murata NKE1212SC DC/DC Converter 12V 83mA 1W 1 Output

Murata Power Solutions
Standard range
Order Code:

10-0179

Brand: Murata Power Solutions MPN: NKE1212SC EAN-13: 2050004764109
Qty Unit Price (Ex VAT)
1+ £6.07
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
37 in stock, despatched in 4 working days

The Murata Power Solutions NKE1212SC DC/DC converter is a compact and efficient solution for converting 12 V at 83 mA, delivering up to 1 W of power. With a single output, it is designed for printed circuit board applications requiring reliable direct current conversion. Typical uses include powering small electronics and providing isolated power supplies in telecommunications and industrial equipment.
Type DC/DC converter (print)
Connection Solder pins
Dim (L x W x H) 11.5 x 7.5 x 6 mm
Efficiency (max.) 79.0%
Enclosure SIP 4
Height 6mm
Input voltage (max.) 5.5V DC
Insulation voltage 3000V
Length 11.5mm
Max. output current 83mA
Min. input voltage 4.5V DC
Misc Attribute NKE1212SC
No. of outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 83mA
Output voltages 12V
Power 1W
Weight 1.09g
Width 7.5mm
