Molex PCB Headers - Female Sockets Built-in pin strip (standard) 608993

Molex Brand: Molex
The Molex Pico-lock series comprises a variety of PCB headers that feature different pin counts and pitch sizes, all designed for surface mount applications with gold plating for enhanced conductivity and durability.
Description Image Product Buy Qty Pricing (Ex VAT) CS Manufacturer part # Nominal current Nominal current - rounded value Total number of pins No. of rows Case material Connection Connector coating thickness Connector contact surface Connector orientation Contact material Factory colour Max. temperature Min. temperature Misc Attribute Nominal voltage Packaging type RoHS-compliant Type

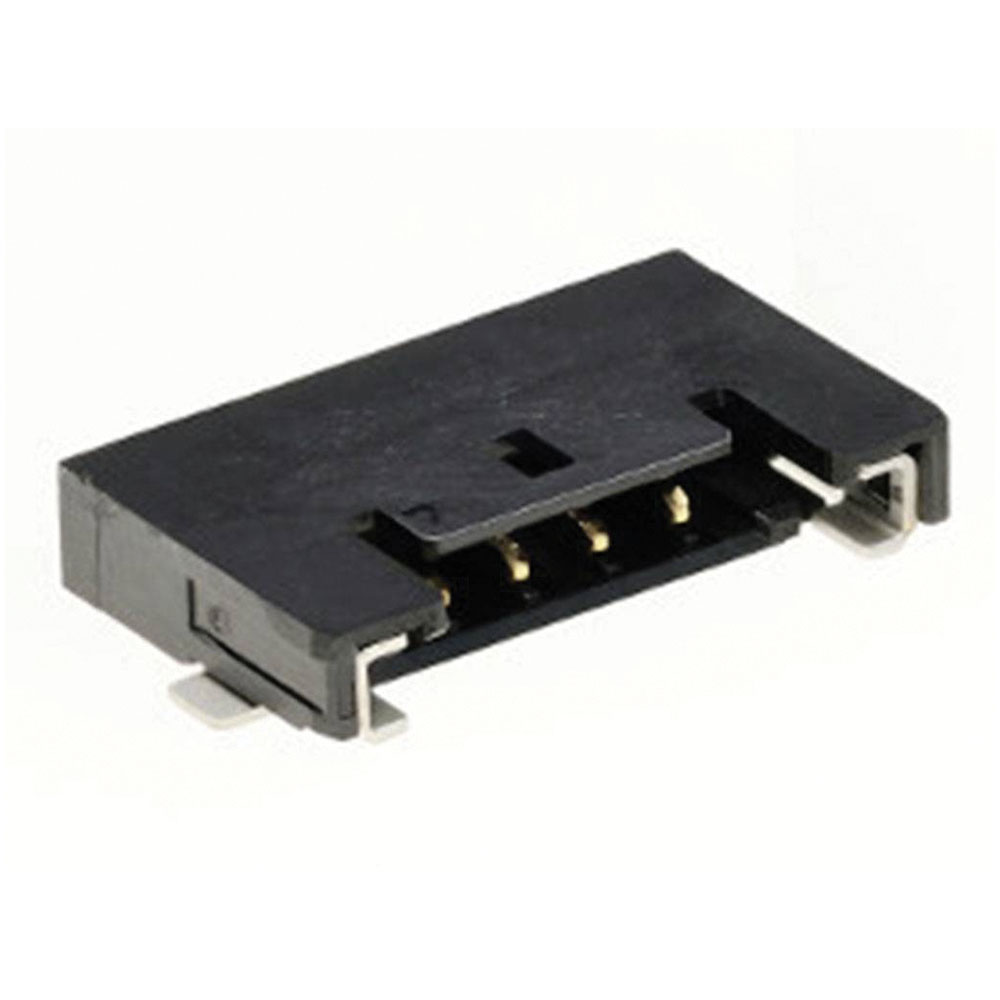

Molex 5037630491 Pico-lock PCB Header 4-pin 1mm Pitch Smt Gold Plated
Molex 5037630491 Pico-lock PCB Header 4-pin 1mm Pitch Smt Gold Plated
Standard range
Order code: 05-3886
MPN: 5037630491

2,988 in Stock, despatched in 4 days
1+ £0.400
1mm 5037630491 1.5A 1.5A 4 1 High temperature resistant thermoplastic SMT 0.1µm Gold Parallel (to the PCB) Copper alloy Black +105°C -40°C MOL Power & Signal Sol. 150V DC/AC Tape on Full reel Yes Built-in pin strip (standard)
Molex 5040500491 Pico-lock PCB Header 4 Pin 1.5mm Pitch Gold Smt
Molex 5040500491 Pico-lock PCB Header 4 Pin 1.5mm Pitch Gold Smt
Standard range
Order code: 05-3892
MPN: 5040500491

2,695 in Stock, despatched in 4 days
1+ £0.510
1.5mm 5040500491 3A 3A 4 1 High temperature resistant thermoplastic SMT 0.1µm Gold Parallel (to the PCB) Copper alloy Black +105°C -40°C MOL Power & Signal Sol. 150V DC/AC Tape on Full reel Yes Built-in pin strip (standard)
Molex 5040500691 Pico-lock 6-pin 1.5mm PCB Header Gold Surface Mount
Molex 5040500691 Pico-lock 6-pin 1.5mm PCB Header Gold Surface Mount
Standard range
Order code: 05-3894
MPN: 5040500691

2,630 in Stock, despatched in 4 days
1+ £0.696
1.5mm 5040500691 3A 3A 6 1 High temperature resistant thermoplastic SMT 0.1µm Gold Parallel (to the PCB) Copper alloy Black +105°C -40°C MOL Power & Signal Sol. 150V DC/AC Tape on Full reel Yes Built-in pin strip (standard)
Molex 5040501091 Pico-lock PCB Header 10-pin 1.5mm Pitch Gold Plating
Molex 5040501091 Pico-lock PCB Header 10-pin 1.5mm Pitch Gold Plating
Standard range
Order code: 05-3896
MPN: 5040501091

2,698 in Stock, despatched in 4 days
1+ £0.920
1.5mm 5040501091 2A 2A 10 1 High temperature resistant thermoplastic SMT 0.1µm Gold Parallel (to the PCB) Copper alloy Black +105°C -40°C MOL Power & Signal Sol. 150V DC/AC Tape on Full reel Yes Built-in pin strip (standard)
