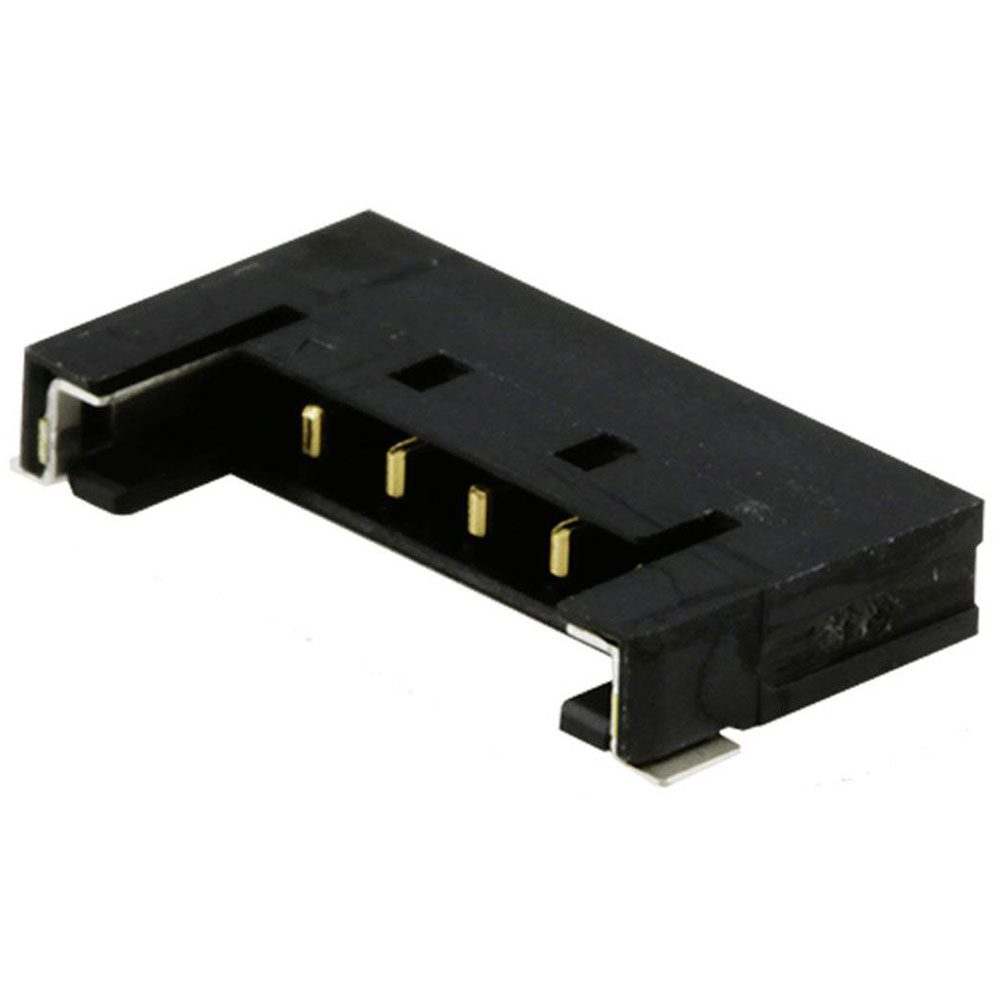

Molex's built-in pin strip, model 5040500691, features 6 pins with a contact spacing of 1.5 mm. It is available as a single unit on a full reel tape, ideal for streamlined assembly processes. Commonly used in consumer electronics, this component facilitates precise and reliable connections.
| Type |
Built-in pin strip (standard) |
| Number of Positions |
6 |
| Number of Rows |
1 |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Breakaway |
No |
| Case Material |
High temperature resistant thermoplastic |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
6 |
| Circuits maximum |
6 |
| Color resin |
Black |
| Colour |
Black |
| Component type |
PCB Header |
| Connection |
SMT |
| Connector coating thickness |
0.1µm |
| Connector contact surface |
Gold |
| Connector orientation |
Parallel (to the PCB) |
| Contact Material |
Copper alloy |
| Cross Section |
1.5mm |
| Csa |
LR19980 |
| Current maximum per contact |
3.0A |
| Delivery unit |
16200 |
| Design registration eligibility |
true |
| Durability mating cycles max |
30 |
| ELV status |
Not Relevant |
| Engineering number |
504050-0691 |
| First mate last break |
No |
| First published date |
2013-05-10 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 34; 33 |
| Glow wire capable |
No |
| Guide to mating part |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keyword |
Pico-Lock 1.5 |
| Lock to mating part |
Yes |
| Mated height |
2.00mm |
| Material metal |
Copper Alloy |
| Material plating mating |
Gold |
| Material plating termination |
Gold |
| Material resin |
High Temperature Thermoplastic |
| Material type |
Finished Goods |
| Maximum Temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
16200 |
| Misc Attribute |
MOL Power & Signal Sol. |
| Net weight |
159.900/mg |
| Nominal Current |
3A |
| Nominal Voltage |
150V DC/AC |
| Orientation |
Right Angle |
| Packaging Type |
Tape on Full reel |
| Pitch mating interface |
1.50mm |
| Pitch termination interface |
1.50mm |
| Plating min mating |
0.100µm |
| Plating min termination |
1.000µm |
| Polarized to mating part |
Yes |
| Primary pack qty |
2700 |
| Product name |
Pico-Lock |
| Product number display |
5040500691 |
| Product number hyphen |
504050-0691 |
| Product number sap |
5040500691 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
504050 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
Yes |
| Stackable |
No |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +105°C |
| Termination interface style |
Surface Mount |
| Ul |
E29179 |
| Upc |
884982939837 |
| Voltage maximum |
150V AC (RMS)/DC |
