Molex PCB Headers - Female Sockets Built-in pin strip (standard) 608984

Molex Brand: Molex
The Molex micro-latch PCB headers, characterised by their small pitch through hole design, are diverse components available in varying pin counts and configurations.
Description Image Product Buy Pricing (Ex VAT) Number of Positions Connector orientation Engineering Part No Engineering Series Name Engineering Series No Type Number of Rows Board contact surface Case Material Coating thickness (PCB side) Connection Connector coating thickness Connector contact surface Connector system Contact Material Cross Section Max. temperature Min. temperature Misc Attribute Nominal Current
Molex 532530270 Micro-latch PCB Header 2 Pins 2mm Pitch Through Hole
Molex 532530270 Micro-latch PCB Header 2 Pins 2mm Pitch Through Hole
Extended range
Order code: 05-4067
MPN: 532530270

798 available to back orderBack-order availability date - 09/01/2026
50+ £0.148
500+ £0.117
Price per unit Ex VAT 		2 Perpendicular (to the PCB) 53253-0270 Hdr Str 53253 Built-in pin strip (standard) 1 Tin Nylon (NL) 1.016µm Soldering 1.016µm Tin wire-to-board Brass 2mm +105°C -40°C Molex MOL Power & Signal Sol. 2A
Molex 532530370 Micro-latch 3-pin Header 2mm Pitch Vertical Tray
Molex 532530370 Micro-latch 3-pin Header 2mm Pitch Vertical Tray
Extended range
Order code: 05-4068
MPN: 532530370

4,707 available to back orderBack-order availability date - 09/01/2026
25+ £0.165
125+ £0.131
500+ £0.127
2500+ £0.117
Price per unit Ex VAT 		3 Perpendicular (to the PCB) 53253-0370 Hdr Str 53253 Built-in pin strip (standard) 1 Tin Nylon (NL) 1.016µm Soldering 1.016µm Tin wire-to-board Brass 2mm +105°C -40°C Molex MOL Power & Signal Sol. 2A

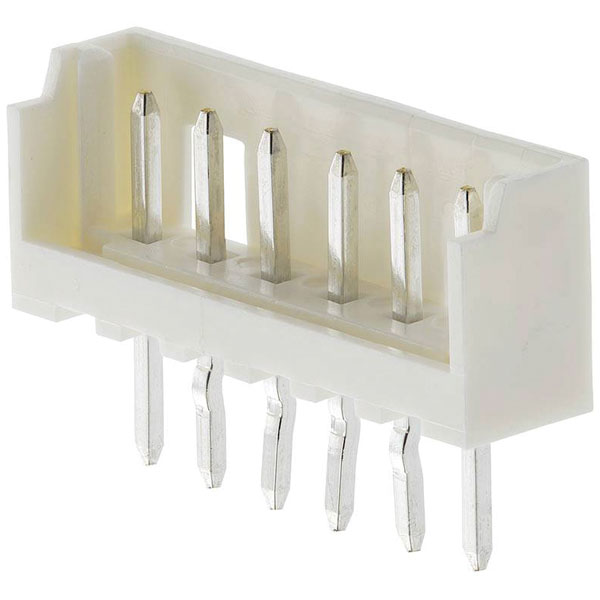

Molex 532530670 Micro-latch PCB Header 6 Pins 2mm Pitch Sn Plating
Molex 532530670 Micro-latch PCB Header 6 Pins 2mm Pitch Sn Plating
Extended range
Order code: 05-4070
MPN: 532530670

149 available to back orderBack-order availability date - 09/01/2026
20+ £0.210
Price per unit Ex VAT 		6 Perpendicular (to the PCB) 53253-0670 Hdr Str 53253 Built-in pin strip (standard) 1 Tin Nylon (NL) 1.016µm Soldering 1.016µm Tin wire-to-board Brass 2mm +105°C -40°C Molex MOL Power & Signal Sol. 2A
Molex 532540970 Micro-latch PCB Header 9 Pins 2mm Pitch Right-angle
Molex 532540970 Micro-latch PCB Header 9 Pins 2mm Pitch Right-angle
Extended range
Order code: 05-4071
MPN: 532540970

139 available to back orderBack-order availability date - 09/01/2026
20+ £0.315
Price per unit Ex VAT 		9 Parallel (to the PCB) 53254-0970 Hdr RA 53254 Built-in pin strip (standard) 1 Tin Nylon (NL) 1.016µm Soldering 1.016µm Tin wire-to-board Brass 2mm +105°C -40°C Molex MOL Power & Signal Sol. 2A
