Molex Circular Contacts Socket housing cable 608889

Molex Brand: Molex
Molex produces a range of micro-fit receptacle housings known for their compact design, featuring various pin configurations and spacing suitable for diverse electrical connectivity applications.
Description Image Product Buy Pricing (Ex VAT) Number of Ways Number of Rows Case Material Circuits maximum Comments Delivery unit ELV status Engineering number Engineering Part No Engineering Series Name Engineering Series No First published date Flammability Glow wire capable H f l h status Material resin Minimum line quantity Net weight Primary pack qty Product number display

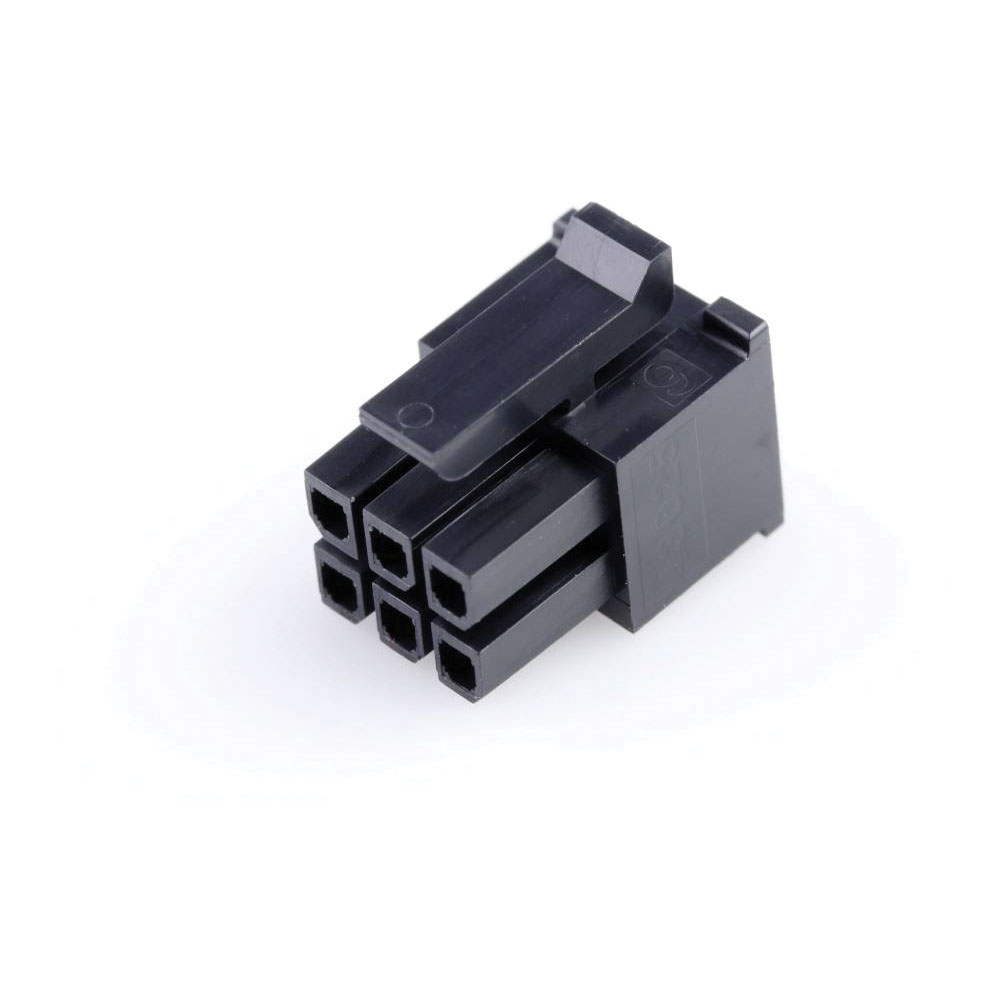

Molex 430250600 Micro-fit Receptacle Housing 6 Pin 3 Mm Low-halogen
Molex 430250600 Micro-fit Receptacle Housing 6 Pin 3 Mm Low-halogen
Standard range
Order code: 05-3610
MPN: 430250600

Despatched within 4 working days - 925 in stock
20+ £0.269
6000+ £0.258
Price per unit Ex VAT 		6 2 Nylon (NL) 6 3000 Compliant per 2000/53/EC 43025-0600 43025-0600 MICRO-FIT RECEPT HSG 43025 2007-05-16 No Low-Halogen per IEC 61249-2-21 Nylon 9000 0.560/g 3000 430250600
Molex 430250810 Micro-fit Receptacle 8 Pins 3mm Spacing Black Dual Row
Molex 430250810 Micro-fit Receptacle 8 Pins 3mm Spacing Black Dual Row
Standard range
Order code: 05-3614
MPN: 430250810

Despatched within 4 working days - 220 in stock
20+ £0.559
5000+ £0.528
Price per unit Ex VAT 		8 2 Nylon (NL) 8 This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customers evaluation of suitability, that higher performance is required, please contact Molex for possible product options. 2500 Not Relevant 43025-0810 43025-0810 MICRO-FIT RECEPT HSG 43025 2016-09-23 Yes Not Low-Halogen per IEC 61249-2-21 Nylon 10000 0.779/g 2500 430250810
Molex 430252200 Micro-fit Receptacle 22 Pins 3mm Dual Row Low-halogen
Molex 430252200 Micro-fit Receptacle 22 Pins 3mm Dual Row Low-halogen
Standard range
Order code: 05-3623
MPN: 430252200

Despatched within 4 working days - 427 in stock
5+ £1.13
100+ £1.06
375+ £1.02
1500+ £0.838
Price per unit Ex VAT 		22 2 Nylon (NL) 22 2000 Compliant per 2000/53/EC 43025-2200 43025-2200 MICRO-FIT RECEPT HSG 43025 2007-05-16 No Low-Halogen per IEC 61249-2-21 Nylon 4000 1.821/g 2000 430252200
Molex 436450210 Micro-fit Receptacle Housing 2 Pins 3 Mm Spacing
Molex 436450210 Micro-fit Receptacle Housing 2 Pins 3 Mm Spacing
Standard range
Order code: 05-3696
MPN: 436450210

Despatched within 4 working days - 177 in stock
20+ £0.294
Price per unit Ex VAT 		2 1 Nylon (NL) 2 5000 Not Relevant 43645-0210 43645-0210 MICROFIT SR RECEPT 43645 2016-10-05 Yes Not Low-Halogen per IEC 61249-2-21 Nylon 10000 0.290/g 5000 436450210
Molex 436450600 Micro-fit Receptacle Housing 6 Pin 3mm Ul 94v-0
Molex 436450600 Micro-fit Receptacle Housing 6 Pin 3mm Ul 94v-0
Standard range
Order code: 05-3704
MPN: 436450600

Despatched within 4 working days - 305 in stock
10+ £0.567
100+ £0.564
375+ £0.560
Price per unit Ex VAT 		6 1 Polyester 6 2000 Compliant per 2000/53/EC 43645-0600 43645-0600 MICROFIT SR RECEPT 43645 2007-05-16 94V-0 No Not Low-Halogen per IEC 61249-2-21 Polyester 6000 0.794/g 2000 436450600
