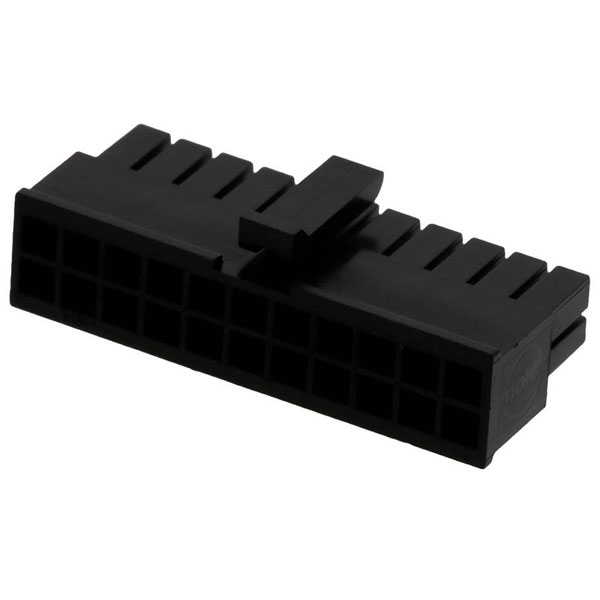

Molex 430252200 Micro-fit Receptacle 22 Pins 3mm Dual Row Low-halogen

Molex
Order Code:

05-3623

Brand: Molex MPN: 430252200 EAN-13: 2050007111870
Qty Unit Price (Ex VAT)
5+ £0.875
100+ £0.764
375+ £0.736
1500+ £0.603
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
427 in stock, despatched in 4 working days

The Molex socket housing cable 430252200 is designed with a total of 22 pins and a contact spacing of 3 mm. It is typically used in electrical and electronic applications requiring secure and reliable connections. This component, provided in a single piece per bag, is ideal for use in projects needing precise and consistent terminations.
Type Socket housing cable
Pitch 3.00mm
Number of Ways 22
Number of Rows 2
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 22
Color resin Black
Colour Black
Connector Type Socket
CS 3mm
Csa LR19980
Delivery unit 2000
Design registration eligibility true
ELV status Compliant per 2000/53/EC
Engineering number 43025-2200
Engineering Part No 43025-2200
Engineering Series Name MICRO-FIT RECEPT HSG
Engineering Series No 43025
First published date 2007-05-16
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 4000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 1.821/g
Packaging Type Bag
Panel mount No
Polarized to mating part Yes
Primary pack qty 2000
Product name Micro-Fit 3.0
Product number display 430252200
Product number hyphen 43025-2200
Product number sap 0430252200
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43025
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800753576735
