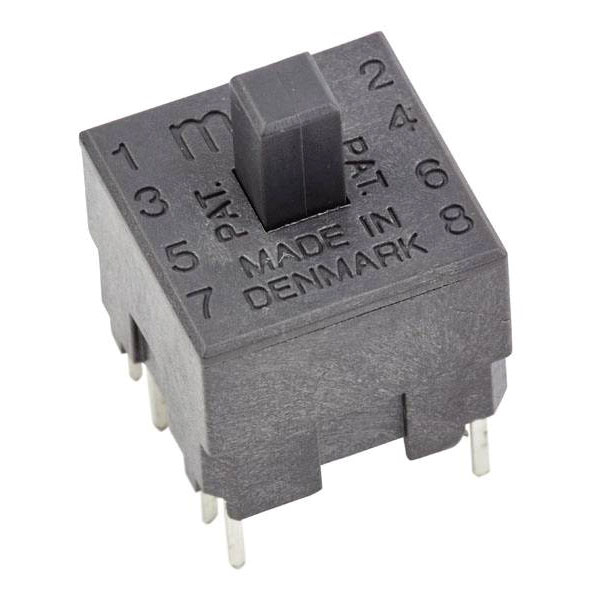

MEC Push-Button Switches Pushbutton 623499

MEC Brand: MEC
The MEC Unimec pushbuttons are a group of momentary switches, typically used in electronic applications, offering reliable performance with a consistent rating of 120V and 250mA, while featuring a durable design with IP54 protection.
Description Image Product Buy Qty Pricing (Ex VAT) Casing/button colour Type Actuating force Contact resistance Dim Functions Height Insulation resistance IP rating Length Lighting type Material Max. switching capacity Max. temperature Min. temperature Misc Attribute RoHS-compliant Switching current (max.) Switching voltage Width
MEC 1540000 Unimec Pushbutton Momentary 120V 250mA 12.6x12.6x15.7mm IP54
MEC 1540000 Unimec Pushbutton Momentary 120V 250mA 12.6x12.6x15.7mm IP54
Standard range
Order code: 09-8788
MPN: 1540000

998 in stock, despatched in 4 working days
1+ £3.80
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Pushbutton 2.5N 100mΩ (L x W x H) 12.60 x 12.60 x 15.70 mm momentary 15.70mm 10mΩ IP54 12.60mm None LCP 9W +160°C -40°C Unimec Series Yes 250mA 120V 12.60mm
MEC 1540109 Unimec Pushbutton 120V 250mA Momentary IP54 1Piece
MEC 1540109 Unimec Pushbutton 120V 250mA Momentary IP54 1Piece
Standard range
Order code: 09-8789
MPN: 1540109

995 in stock, despatched in 4 working days
1+ £3.66
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Black Pushbutton 2.5N 100mΩ (L x W x H) 12.60 x 12.60 x 15.70 mm momentary 15.70mm 10mΩ IP54 12.60mm None LCP 9W +160°C -40°C Unimec Series Yes 250mA 120V 12.60mm
MEC 1540209 Unimec Pushbutton 120V 250mA Momentary IP54 12.6x12.6x15.7mm
MEC 1540209 Unimec Pushbutton 120V 250mA Momentary IP54 12.6x12.6x15.7mm
Standard range
Order code: 09-8790
MPN: 1540209

494 in stock, despatched in 4 working days
1+ £6.00
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Black Pushbutton 2.5N 100mΩ (L x W x H) 12.60 x 12.60 x 15.70 mm momentary 15.70mm 10mΩ IP54 12.60mm None LCP 9W +160°C -40°C Unimec Series Yes 250mA 120V 12.60mm
