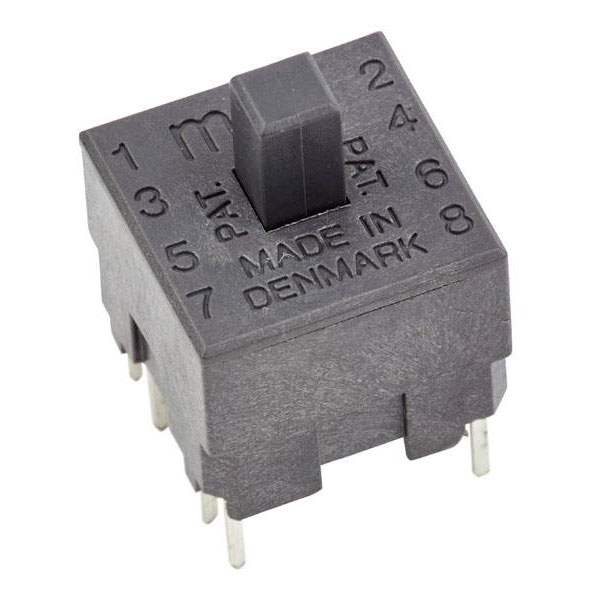

MEC 1540000 Unimec Pushbutton Momentary 120V 250mA 12.6x12.6x15.7mm IP54

MEC
Order Code:

09-8788

Brand: MEC MPN: 1540000 EAN-13: 2050011398786
Qty Unit Price (Ex VAT)
2+ £3.80
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
983 available to back orderBack-order availability date - 16/01/2026

The MEC 1540000 Pushbutton from the Unimec Series is a momentary switch designed for standard circuits. It operates at 120 V and 250 mA with an IP54 rating for dust and water resistance. This switch is typically used in control panels or electronic devices, offering reliable performance in various applications.
Type Pushbutton
Switch Function momentary
Current Rating 250mA
Actuating Force 2.5N
Contact Resistance 100mΩ
Dim (L x W x H) 12.60 x 12.60 x 15.70 mm
Height 15.70mm
Insulation Resistance 10mΩ
IP Rating IP54
Length 12.60mm
Lighting type None
Material LCP
Max. switching capacity 9W
Max. temperature +160°C
Min. temperature -40°C
Misc Attribute Unimec Series
Switching Voltage 120V
Width 12.60mm
