MEC 1540209 Unimec Pushbutton 120V 250mA Momentary IP54 12.6x12.6x15.7mm

MEC
Standard range
Order Code:

09-8790

Brand: MEC MPN: 1540209 EAN-13: 2050011398809
Qty Unit Price (Ex VAT)
1+ £6.00
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
494 in stock, despatched in 4 working days

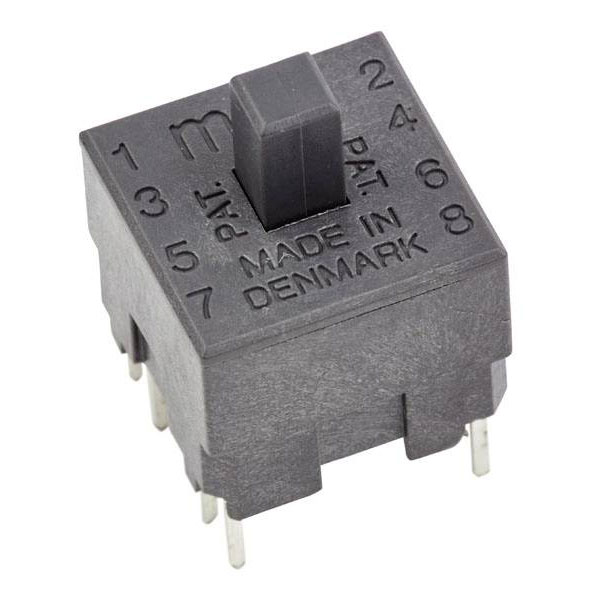

The MEC 1540209 Pushbutton is a momentary switch from the Unimec Series, designed for reliable performance with a 120 V and 250 mA rating. This compact pushbutton measures 12.60 x 12.60 x 15.70 mm and offers IP54 protection, making it suitable for general electronic applications. Often used in control panels, the switch is ideal for applications requiring secure and momentary operation with environmental protection.
Type Pushbutton
Actuating force 2.5N
Casing/button colour Black
Contact resistance 100mΩ
Dim (L x W x H) 12.60 x 12.60 x 15.70 mm
Functions momentary
Height 15.70mm
Insulation resistance 10mΩ
IP rating IP54
Length 12.60mm
Lighting type None
Material LCP
Max. switching capacity 9W
Max. temperature +160°C
Min. temperature -40°C
Misc Attribute Unimec Series
RoHS-compliant Yes
Switching current (max.) 250mA
Switching voltage 120V
Width 12.60mm
