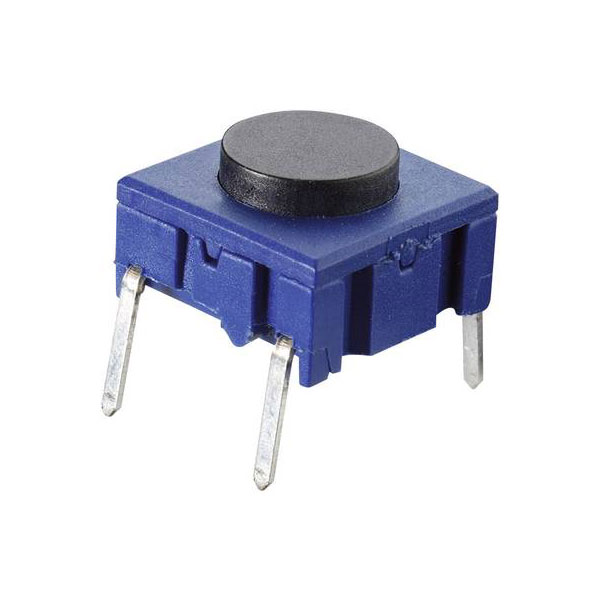

MEC 3ETH9 Pushbutton 24V DC 0.05A IP67 Momentary 1x Off/(On)

MEC
Standard range
Order Code:

12-4607

Brand: MEC MPN: 3ETH9 EAN-13: 2050000224799
Qty Unit Price (Ex VAT)
1+ £1.41
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
126 in stock, despatched in 4 working days

The MEC 3ETH9 pushbutton is a momentary switch that operates at 24 V DC and 0.05 A, designed for off/(on) configurations. It features IP67 protection, making it suitable for use in environments where dust and moisture are present. Commonly used in industrial and commercial applications, this button is ideal for applications requiring reliable actuation under challenging conditions.
Type Pushbutton
Board thickness (max.) 5.1mm
Casing/button colour Black
Connection Print
Contact resistance 10 mΩ
Contact type 1 maker
Durability
>10 x 106 cycles
Electrical lifespan
>10 x 106 cycles
Front panel cut-out 10.1 x 10.1 mm
Functions momentary
Height 6.4mm
Insulation resistance >10MΩ
IP rating IP67
Lighting type None
Max. temperature +115°C
Min. temperature -40°C
Misc Attribute 1 1 x off/(on)
Misc Attribute 2 3ETH9
Switch position 1 x Off/(On)
Switch/button features Protruding
Switching capacity max. 50 mA/24V DC
Switching Current 50mA
Switching current (max.) 0.05A
Switching voltage 24V DC
Temperature range -40 - +115°C
