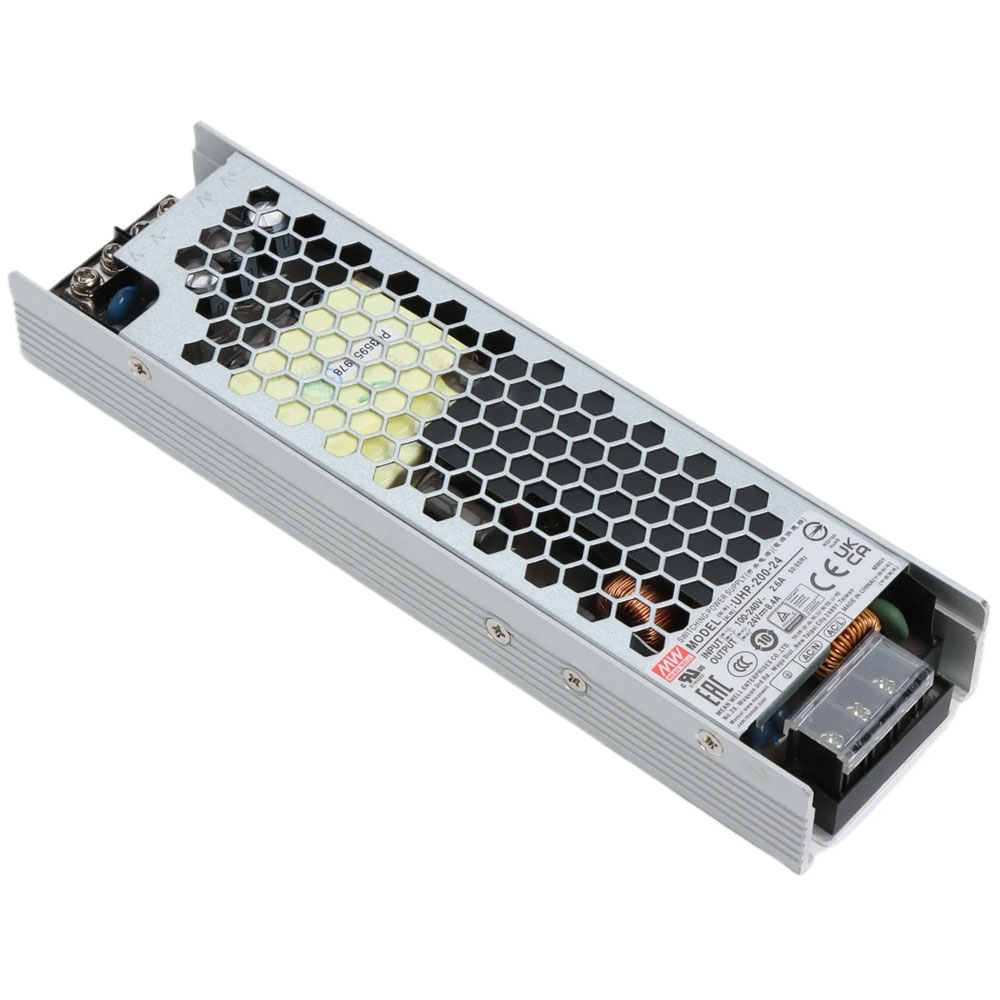

MeanWell UHP-200-24 200 watt Low Profile Enclosed PSU

MPN: UHP-200-24
Brand: Mean Well
Order Code: 85-3061
Country of Origin: China

Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
5+	£50.53

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 5

Available to back orderBack-order availability date - 13/11/2026

Product Details
Product Range
Data Sheets

MeanWell UHP-200-24 200 watt Low Profile Enclosed PSU - single output AC to DC embedded switch mode power supply has an output current rating of 8.4A at 24VDC.
It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 370VDC.

It has complete protection functions and 5G anti-vibration capability.

Slim and low profile (26mm)
Fanless design, 200W convection
Withstand 300VAC surge input for 5 seconds
Build-in active PFC function
Peak load capability of 150% (100ms)
Working temperature ranging between -30°C and 70°C
Short circuit protection
Overload protection
Overvoltage and over temperature protection
DC OK active signal and redundant function
Operating altitude up to 5000m
LED indicator for power ON

Output Voltage [DC]	24V
Output Current	8.4A
Power Rating	201.6W
Number of Outputs	1
Input Voltage	180-264VAC
Dimensions	(L x W x H) 194 x 55 x 26mm
Operating altitude	up to 5000m
Output Voltage	22.8 to 25.2V
Temperature Range	-30 to +70°C
Type	Low Profile Enclosed
