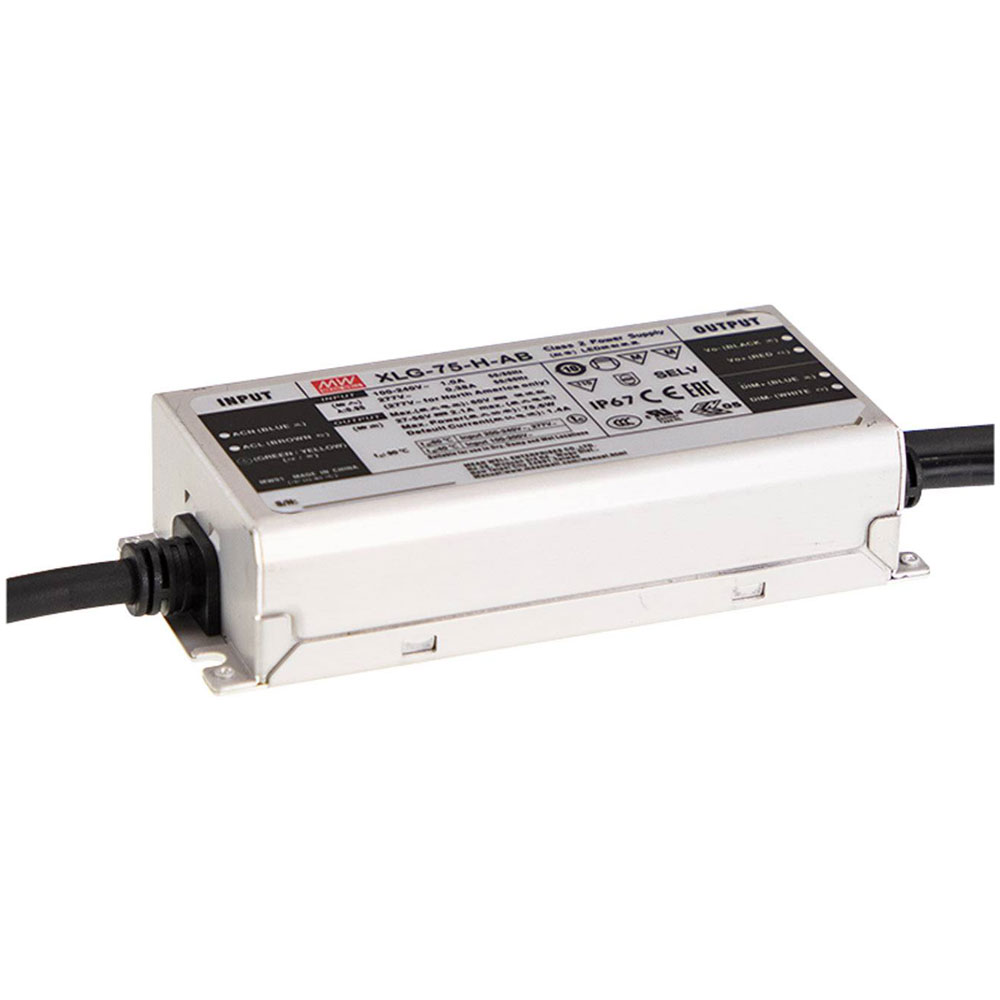

Mean Well XLG-75-L-A LED driver 75W 350-1050mA outdoor surge protection

Mean Well
Order Code:

05-1947

Brand: Mean Well MPN: XLG-75-L-A EAN-13: 4021087051415
Qty Unit Price (Ex VAT)
1+ £23.90
10+ £21.51
25+ £20.66
50+ £20.50
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well XLG-75-L-A LED driver is a constant power 75 W unit designed for LED applications. It features an adjustable current range of 350 to 1050 mA and a voltage range of 53 to 107 V DC, with integrated surge and overvoltage protection. Approved for use on furniture and suitable for flammable surfaces, it is ideal for both indoor and outdoor lighting installations.
Type LED driver
Connection Open end cable
Dim (L x W x H) 140 x 63 x 32 mm
Factory colour Metal
Height 32mm
IP Rating IP67
Length 140mm
Max. output current 1050mA
Max. power 75W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Outputs 1
Output current (max.) - rounded 1.05A
Output current (min.) 350mA
Output voltage (max.) 107V DC
Output voltage (min.) 53V DC
Power range 75 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
