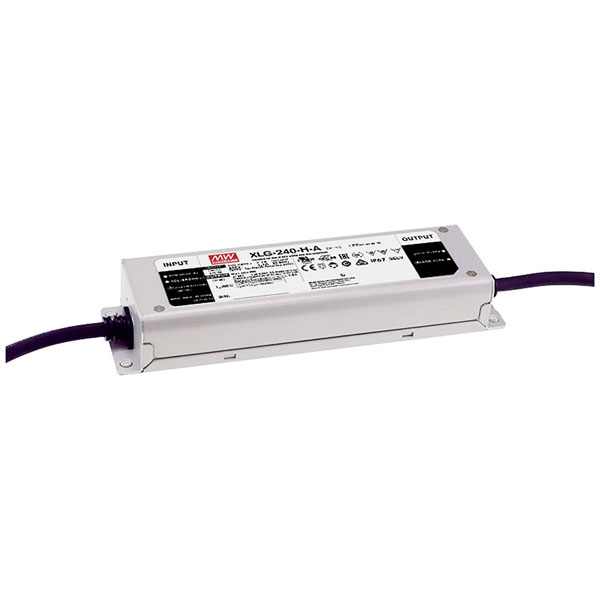

Mean Well XLG-240-L-AB XLG-series LED driver 239.4W dimmable outdoor

Mean Well
Order Code:

05-1936

Brand: Mean Well MPN: XLG-240-L-AB EAN-13: 4021087051484
Qty Unit Price (Ex VAT)
1+ £44.41
10+ £39.97
25+ £38.38
50+ £37.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 22/12/2025

The Mean Well XLG-240-L-AB LED driver is a constant power unit delivering 239.4 W, with adjustable output of 350 - 1050 mA and 178 - 342 V DC. It features a 3-in-1 dimmer, surge protection, and is approved for both outdoor use and installation on furniture, as well as on flammable surfaces. Ideal for powering LED lighting applications, it ensures reliability with its PFC circuit and overvoltage protection.
Type LED driver
Output Voltage 178V DC
Max Output Power 239.4W
Output Current 350mA
Colour Metal
Connection Open end cable
Dimensions (L x W x H) 219 x 63 x 35.5 mm
Height 35.5mm
IP Rating IP67
Length 219mm
Max. output current 1050mA
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
