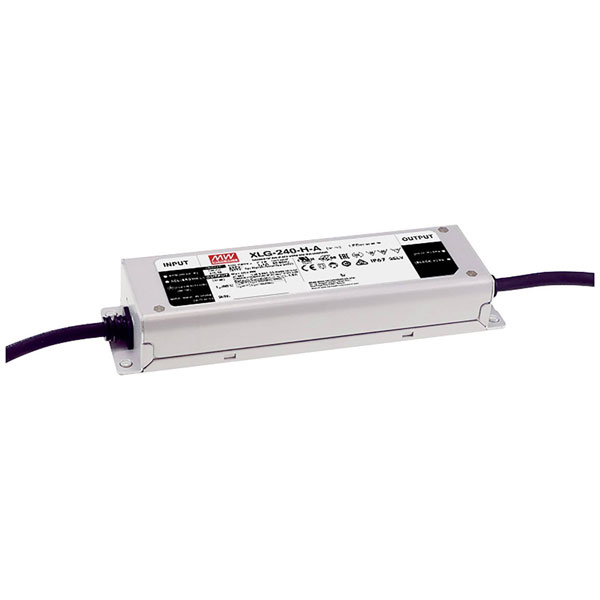

Mean Well XLG-240-H-A LED driver 239.6 W 2200-6660 mA 27-56 V DC

Mean Well
Order Code:

05-1933

Brand: Mean Well MPN: XLG-240-H-A EAN-13: 4021087051514
Qty Unit Price (Ex VAT)
1+ £44.89
10+ £40.40
25+ £38.79
50+ £37.43
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 15/12/2025

The Mean Well XLG-240-H-A LED driver is a constant power unit with a rating of 239.6 W, delivering 2,200 to 6,660 mA at 27 to 56 V DC. It features an adjustable output, surge protection, and an overvoltage design, and is suitable for outdoor environments, furniture, and flammable surfaces. Typical applications include powering LED strips and lighting systems, with its PFC circuit ensuring efficiency and stability.
Type LED driver
Connection Open end cable
Dim (L x W x H) 219 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP67
Length 219mm
Max. output current 6660mA
Max. power 239.6W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 6.66A
Output current (min.) 2200mA
Output voltage (max.) 56V DC
Output voltage (min.) 27V DC
Power range 239.6 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
