Mean Well XLG-150-H-AB LED driver 150W 27-56V DC dimmable surge protection

Mean Well
Order Code:

05-1923

Brand: Mean Well MPN: XLG-150-H-AB EAN-13: 4021087051644
Qty Unit Price (Ex VAT)
1+ £38.15
10+ £34.34
25+ £32.97
50+ £31.86
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

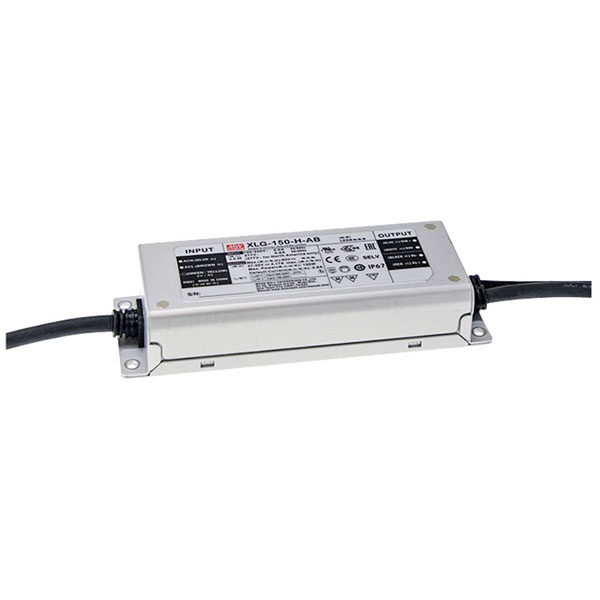

The Mean Well XLG-150-H-AB is a constant power LED driver with a power rating of 150 W, delivering 2680 - 4170 mA at 27 - 56 V DC. It features a 3-in-1 dimmer, PFC circuit, surge protection, and overvoltage protection, and is suitable for outdoor use, including furniture and flammable surfaces. Typical applications include powering LED strips and lighting fixtures, where dimmable and adjustable lighting is
Type LED driver
Connection Open end cable
Dim (L x W x H) 180 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP67
Length 180mm
Max. output current 4170mA
Max. power 150W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 4.17A
Output current (min.) 2680mA
Output voltage (max.) 56V DC
Output voltage (min.) 27V DC
Power range 150 W (max)
Test mark CE, CB, MM, ENEC, UL
Width 63mm
