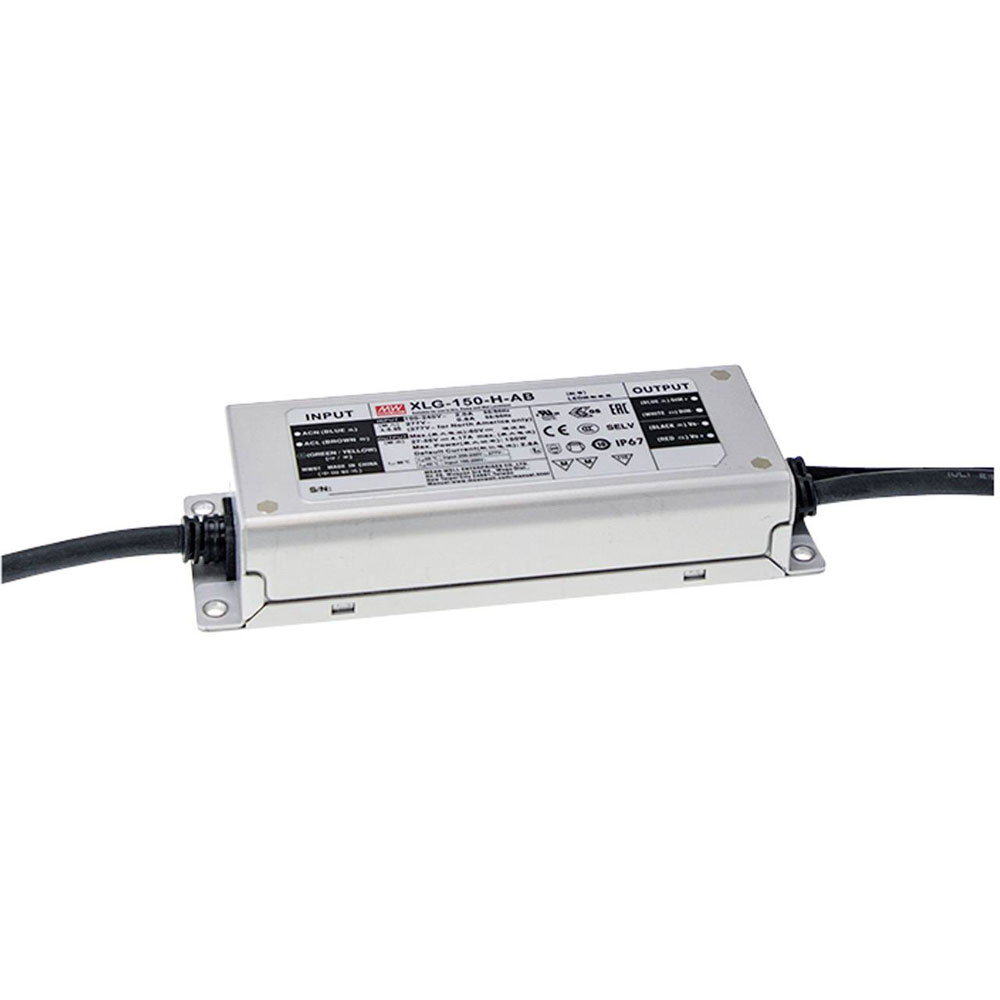

Mean Well XLG-150-H-A XLG series LED driver 150W 27-56V DC adjustable

Mean Well
Standard range
Order Code:

05-1922

Brand: Mean Well MPN: XLG-150-H-A
Qty Unit Price (Ex VAT)
1+ £35.21
10+ £31.69
25+ £30.42
50+ £29.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
14 in stock, despatched in 4 working days

The Mean Well XLG-150-H-A is an LED driver with a constant power output of 150 W, operating with a current range of 2680 to 4170 mA and a voltage range from 27 to 56 V DC. It is designed for outdoor use and is suitable for installation on furniture and flammable surfaces. Key features include an adjustable power factor correction circuit, surge protection, and overvoltage protection, making it ideal for powering LED lighting systems such as LED strips
Type LED driver
Connection Open end cable
Dim (L x W x H) 180 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP rating IP67
Length 180mm
Max. output current 4170mA
Max. power 150W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 4.17A
Output current (min.) 2680mA
Output voltage (max.) 56V DC
Output voltage (min.) 27V DC
Power range 150 W (max)
Test mark CE, CB, MM, ENEC, UL
Weight 800g
Width 63mm
