Mean Well XLG-100-H-AB XLG-series LED driver 100W dimmable outdoor use

Mean Well
Standard range
Order Code:

05-1917

Brand: Mean Well MPN: XLG-100-H-AB
Qty Unit Price (Ex VAT)
1+ £35.27
10+ £31.74
25+ £30.47
50+ £29.41
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

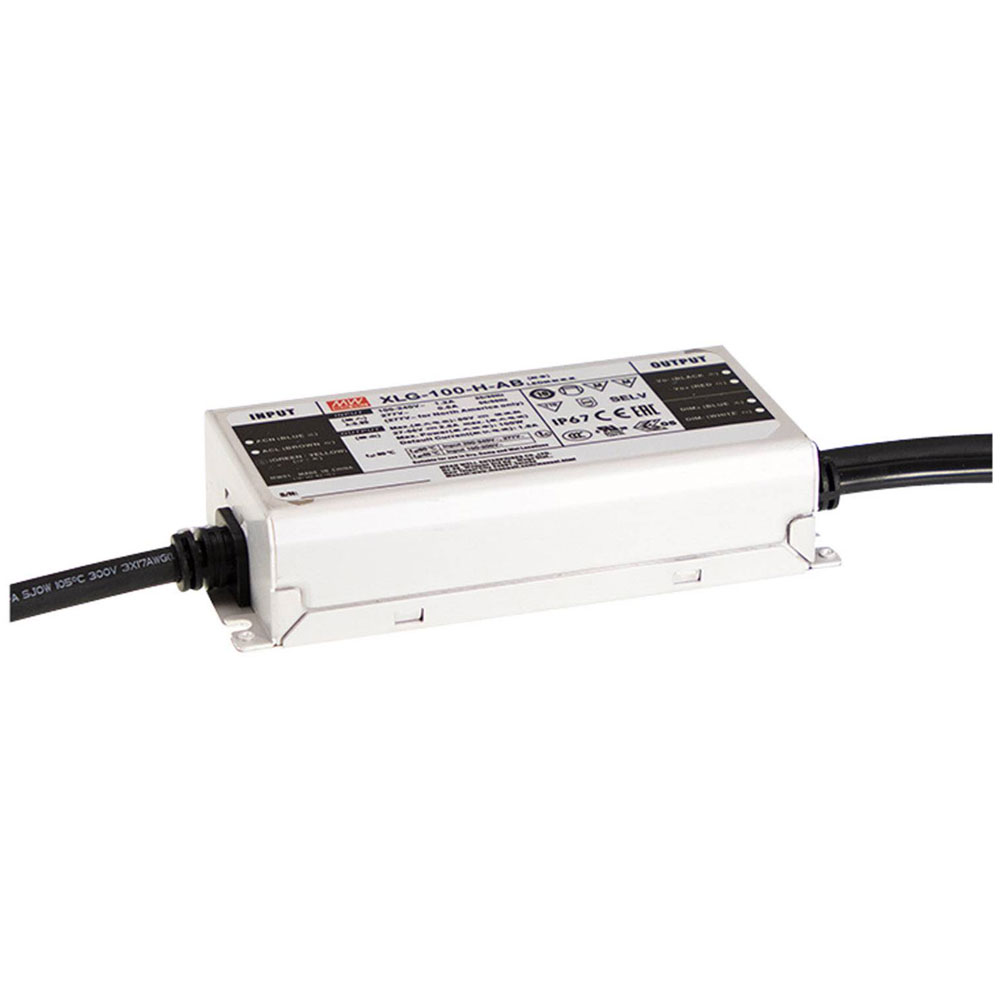

The Mean Well XLG-100-H-AB is an LED driver with constant power of 100 W, offering a current range of 780 - 2780 mA and voltage output of 27 - 56 V DC. It features a 3-in-1 dimmer, making it adjustable and dimmable, and includes protection features such as surge protection and overvoltage protection. This LED driver is suitable for use with furniture, outdoor applications, and on flammable surfaces.
Type LED driver
Connection Open end cable
Dim (L x W x H) 140 x 63 x 32 mm
Factory colour Metal
Height 32mm
IP rating IP67
Length 140mm
Max. output current 2780mA
Max. power 100W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 2.78A
Output current (min.) 780mA
Output voltage (max.) 56V DC
Output voltage (min.) 27V DC
Power range 100 W (max)
Protection class I
Test mark CE, CB, MM, ENEC, UL, SELV
Weight 580g
Width 63mm
