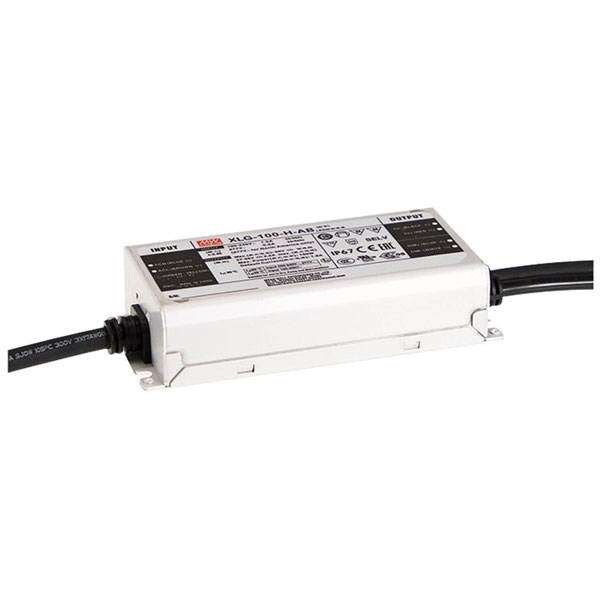

Mean Well XLG-100-H-A LED driver XLG series 100W 780-2780mA 27-56V DC

Mean Well
Order Code:

05-1916

Brand: Mean Well MPN: XLG-100-H-A EAN-13: 4021087051712
Qty Unit Price (Ex VAT)
1+ £31.46
10+ £28.31
25+ £27.18
50+ £26.27
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well XLG-100-H-A LED driver delivers a constant power of 100 W with an adjustable current range of 780 - 2780 mA and voltage range of 27 - 56 V DC. It features surge protection, overvoltage protection, and is approved for use on furniture and flammable surfaces, making it suitable for outdoor applications. Typical uses include powering LED strips and other LED lighting installations with enhanced reliability and safety.
Type LED driver
Connection Open end cable
Dim (L x W x H) 140 x 63 x 32 mm
Factory colour Metal
Height 32mm
IP Rating IP67
Length 140mm
Max. output current 2780mA
Max. power 100W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 2.78A
Output current (min.) 780mA
Output voltage (max.) 56V DC
Output voltage (min.) 27V DC
Power range 100 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL, SELV
Width 63mm
