Mean Well XLG-100-12-A LED driver 12V 96W adjustable outdoor surge protection

Mean Well
Order Code:

05-1914

Brand: Mean Well MPN: XLG-100-12-A EAN-13: 4021087051736
Qty Unit Price (Ex VAT)
1+ £25.68
10+ £23.12
25+ £22.18
50+ £21.45
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

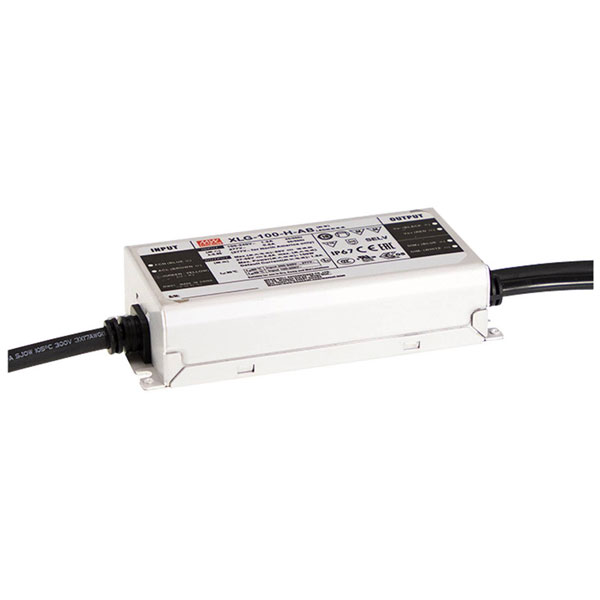

The Mean Well XLG-100-12-A is an LED driver providing a constant voltage and current of 12 V DC and 4 - 8 A, with a power rating of 96 W. It includes surge protection, is suitable for outdoor use, and is approved for application on furniture and flammable surfaces. This adjustable LED power supply is ideal for powering LED strips and fixtures, ensuring efficient operation with its built-in PFC circuit.
Type LED driver
Connection Open end cable
Dim (L x W x H) 140 x 63 x 32 mm
Factory colour Metal
Height 32mm
IP Rating IP67
Length 140mm
Max. output current 8A
Max. power 96W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 8A
Output current (min.) 4A
Output voltage (max.) 12V DC
Power range 96 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL, SELV
Width 63mm
