Mean Well UHP-750-48 UHP SMPSU 48V 15.7A 753.6W 96% efficiency -30°C to 70°C

Mean Well
Standard range
Order Code:

05-1904

Brand: Mean Well MPN: UHP-750-48
Qty Unit Price (Ex VAT)
1+ £182.97
5+ £177.48
10+ £172.00
25+ £166.51
50+ £161.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
24 in stock, despatched in 4 working days

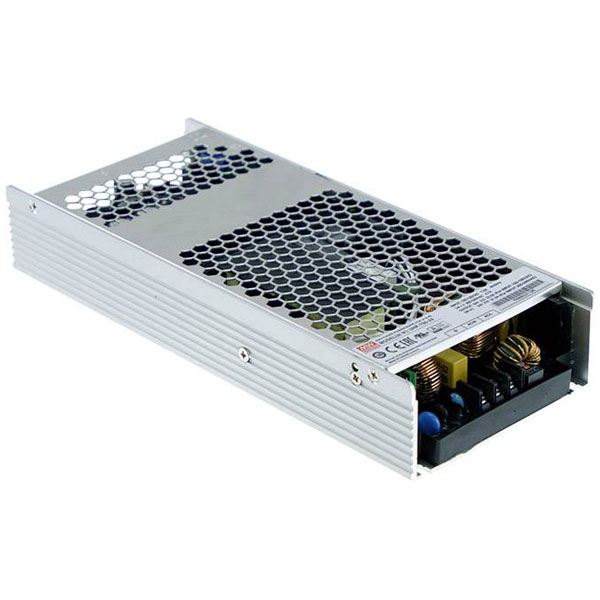

The Mean Well UHP-750-48 is a switched-mode power supply unit (SMPSU) featuring a 48 V DC output at 15.7 A with a power rating of 753.6 W. This PCB-mounted power supply includes screw terminals for easy connection, making it ideal for integration into circuit boards. Typical applications include industrial automation equipment and other electronic devices requiring reliable, high-power performance.
Type SMPSU
Connection Screw terminal
Dim (L x W x H) 237 x 100 x 41 mm
Height 41mm
Length 237mm
Max. output current 15.7A
Misc Attribute 1 UHP-750-48
Misc Attribute 2 closed
Misc Attribute 3 Pulsed
MTBF 2799700h
No. of outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 15.7A
Output voltage (max.) 48V DC
PFC Yes
Power 753.6W
PSU features Adjustable voltage output
Weight 1400g
Width 100mm
