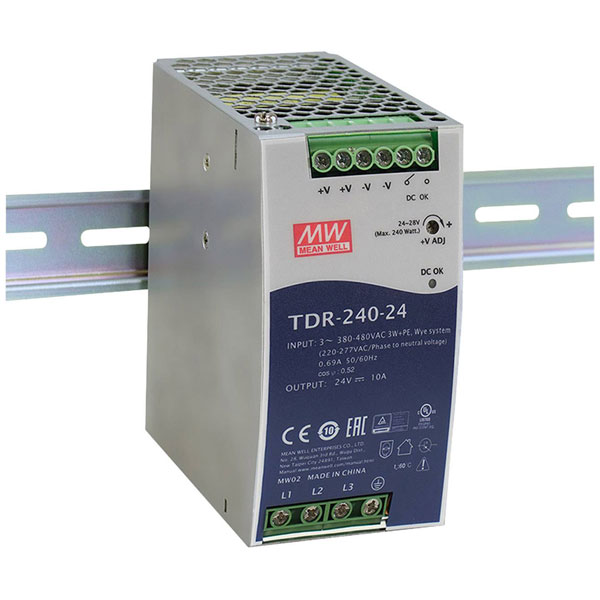

Mean Well TDR-240-24 TDR-240-series rail PSU 24V DC 10A 240W 1 output

Mean Well
Order Code:

05-1875

Brand: Mean Well MPN: TDR-240-24 EAN-13: 4021087047999
Qty Unit Price (Ex VAT)
1+ £81.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 16/12/2025

The Mean Well TDR-240-24 is a rail-mounted power supply unit providing 24 V DC at 10 A, delivering a total power output of 240 W. It is ideal for industrial applications due to its reliable single-output design and screw terminal connections. This DIN rail power supply is specifically engineered for easy installation in tight spaces, making it suitable for various industrial environments.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Connection Screw terminal
Dim (L x W x H) 113.5 x 63 x 125.2 mm
Efficiency 92%
Height 125.2mm
Length 113.5mm
Max. output current 10A
Misc Attribute 2 Pulsed
MTBF 5154000h
Nominal Input Voltage 400 - 500 V/AC
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 10A
Output type (power supply units) Adjustable
Output voltage (max.) 28V DC
Output voltage (min.) 24V DC
Output voltage (nominal) 24V DC
Phases 3
Power 240W
PSU features Adjustable voltage output
Width 63mm
