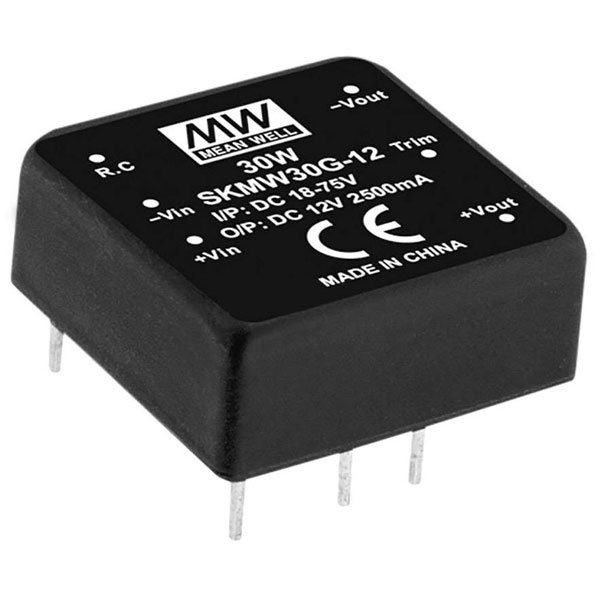

Mean Well SKMW30G-12 DC/DC converter 30W 2.5A single output 1x1in.

Mean Well
Standard range
Order Code:

05-1778

Brand: Mean Well MPN: SKMW30G-12
Qty Unit Price (Ex VAT)
1+ £35.25
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Mean Well SKMW30G-12 is a DC/DC converter with a power rating of 30 watts and an output current of 2.5 amperes, and features a single output. It is suitable for applications requiring efficient energy conversion in compact electronic systems. Typical uses include power supply systems for industrial, telecommunications, and portable devices.
Type DC/DC converter
Connection Pins
Dim (L x W x H) 25.4 x 25.4 x 10.2 mm
Efficiency (max.) 89%
Height 10.2mm
Input voltage (max.) 75V DC
Insulation voltage 1500V DC
Length 25.4mm
Max. output current 2.5A
Min. input voltage 18V DC
Misc Attribute SKMW30G-12
No. of outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 2.5A
Output voltage (max.) 12V DC
Power 30W
PSU features DC-to-DC converter
RoHS-compliant Yes
Weight 18g
Width 25.4mm
