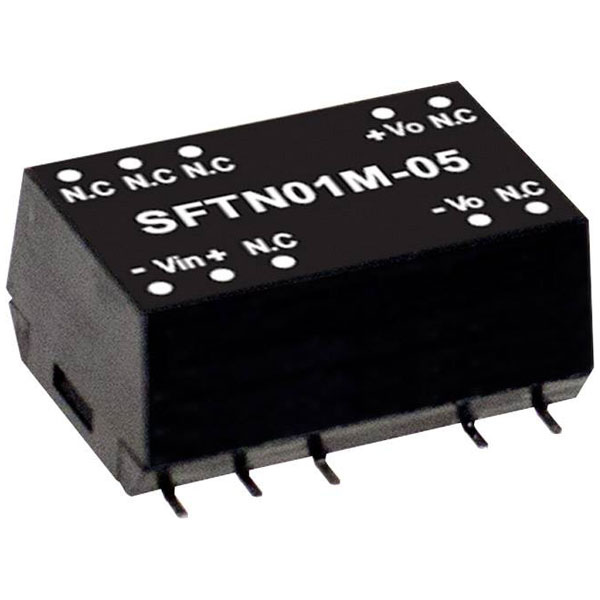

Mean Well SFTN01N-05 DC/DC converter 1W 200mA 1 output -40 to +90°C

Mean Well
Order Code:

05-1716

Brand: Mean Well MPN: SFTN01N-05 EAN-13: 4021087041645
Qty Unit Price (Ex VAT)
1+ £4.14
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

The Mean Well SFTN01N-05 is a DC/DC converter module featuring a single output with a current rating of 200 mA and a power rating of 1 W. It is commonly used in applications requiring voltage conversion and current rectification in compact electronic devices. Suitable for use in power supplies and electronic kits where efficient DC voltage regulation is needed.
Connection Pins
Dim (L x W x H) 15.24 x 10.9 x 7.1 mm
Efficiency (max.) 77%
Height 7.1mm
Input voltage (max.) 26.4V DC
Insulation Voltage 3000V DC
Length 15.24mm
Max. output current 200mA
Min. input voltage 21.6V DC
Number of Outputs 1
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 200mA
Output current (min.) 20mA
Output voltage (max.) 5V DC
Power 1W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 10.9mm
