Mean Well RSP-500-5 SMPSU 5V 90A 450W universal input overload protection

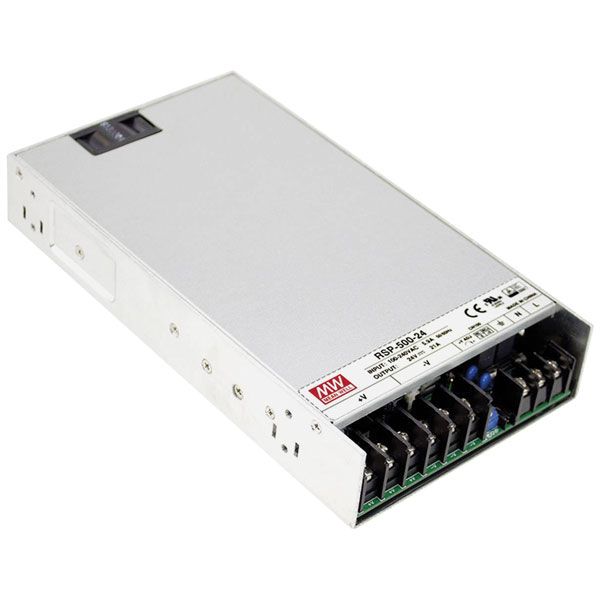

Image Representative of Range

Mean Well RSP-500-5 SMPSU 5V 90A 450W universal input overload protection

Mean Well
Standard range
Order Code:

05-1609

Brand: Mean Well MPN: RSP-500-5
Qty Unit Price (Ex VAT)
1+ £93.86
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
22 in stock, despatched in 4 working days

The Mean Well RSP-500-5 is a switch-mode power supply unit (SMPSU) providing 5 V DC at a 90 A current rating, delivering up to 450 W of power. It is designed for PCB mounting with screw terminals and solder lugs, ideal for efficient and reliable power distribution on circuit boards. This PSU is typically used in industrial applications, automated machinery, and other high-power electronic systems.
Type SMPSU
Connection Screw terminal
Dim (L x W x H) 230.00 x 127.00 x 40.50 mm
Height 40.50mm
Input voltage (max.) 264V AC
Length 230.00mm
Max. output current 90A
Min. input voltage 90V AC
Misc Attribute 1 Synchronised
Misc Attribute 2 RSP-500-5
Misc Attribute 3 closed
No. of inputs 1
No. of outputs 1
Output current (details) 90 A
Output current (max.) - rounded 90A
Output current (min.) 0A
Output voltage 5 V DC
Output voltage (max.) 5V DC
Output voltage (min.) 5V DC
Power 450W
Weight 1411.11g
Width 127.00mm
