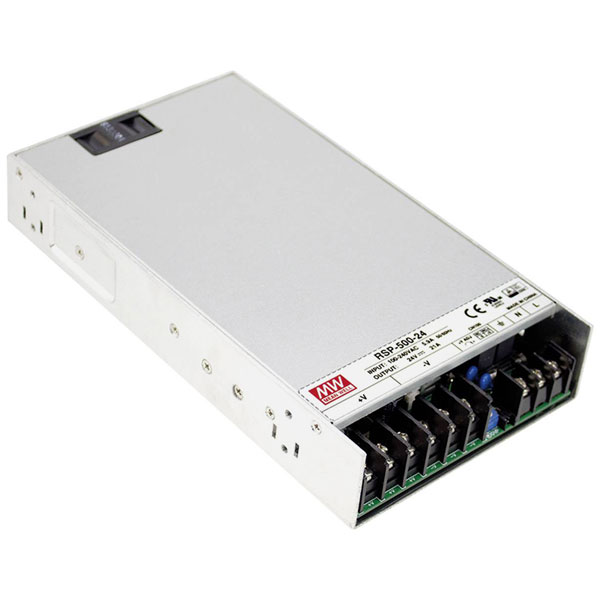

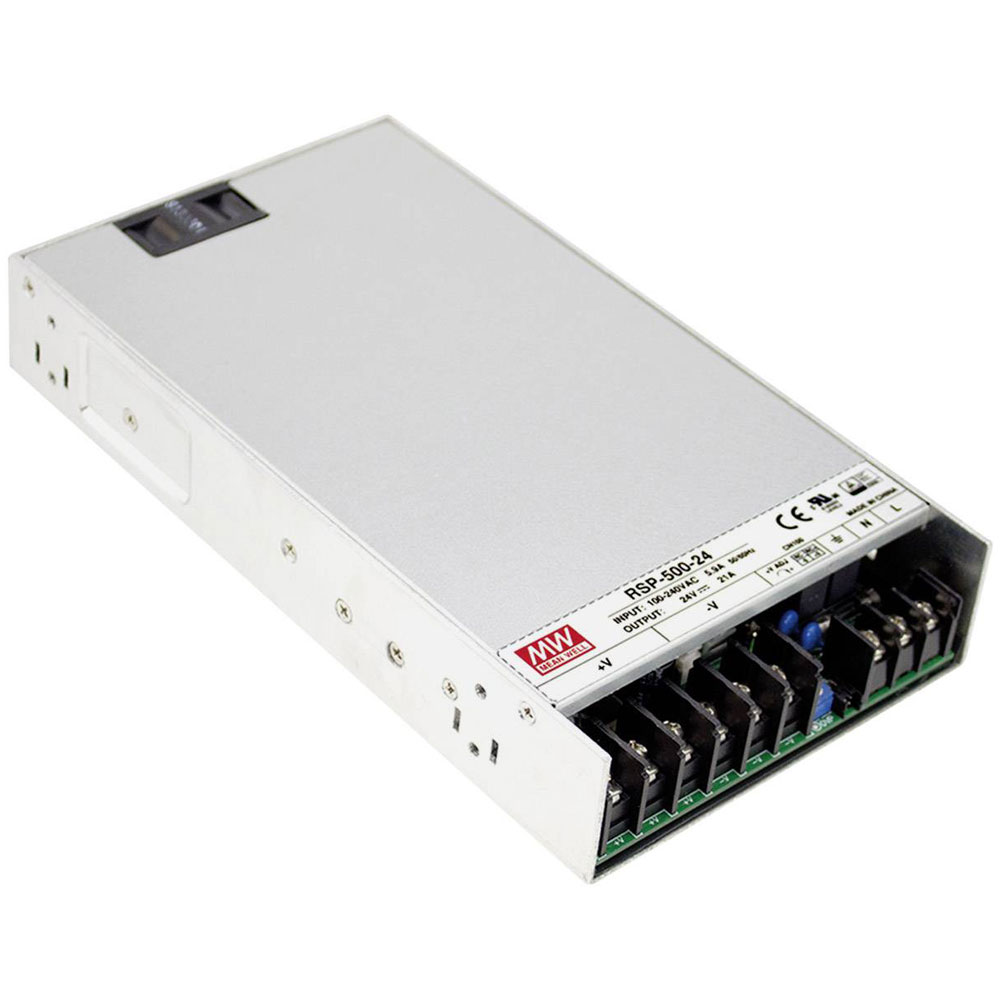

Mean Well RSP-500-12 RSP SMPSU 12V 41.7A 500W enclosed case with fan

Mean Well
Standard range
Order Code:

05-1606

Brand: Mean Well MPN: RSP-500-12
Qty Unit Price (Ex VAT)
1+ £87.98
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
48 in stock, despatched in 4 working days

Mean Well manufactures the RSP-500-12 SMPSU, a 12 V DC power supply unit capable of delivering 41.7 A and 500 W. This switching mode power supply unit features screw terminals and is suitable for PCB mounting, making it ideal for applications in electronic devices requiring stable power. Typical uses include supplying power to high-current demand components in both industrial and commercial settings.
Type SMPSU
Connection Screw terminal
Dim (L x W x H) 230.00 x 127.00 x 40.50 mm
Height 40.50mm
Input voltage (max.) 264V AC
Length 230.00mm
Max. output current 41.7A
Min. input voltage 90V AC
Misc Attribute 1 Synchronised
Misc Attribute 2 RSP-500-12
Misc Attribute 3 closed
No. of inputs 1
No. of outputs 1
Output current (details) 41.7 A
Output current (max.) - rounded 41.7A
Output current (min.) 0A
Output voltage 12 V DC
Output voltage (max.) 12V DC
Output voltage (min.) 12V DC
Power 500W
Weight 1411.11g
Width 127.00mm
