Mean Well RSP-150-27 SMPSU 27V 5.6A 151W Enclosure with protection features

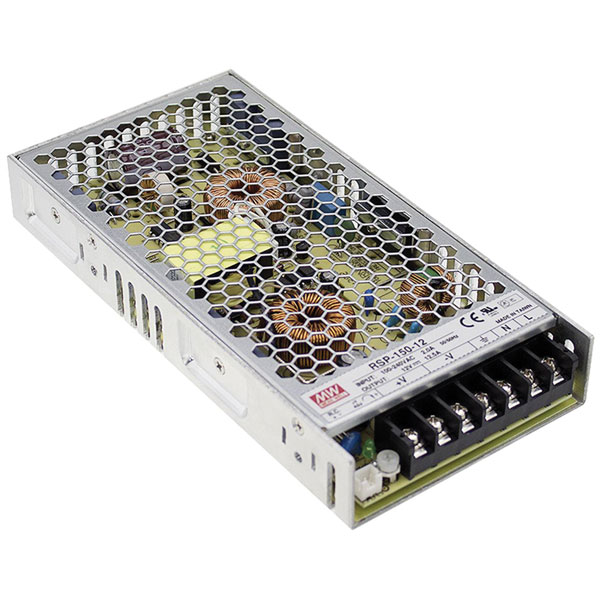

Image Representative of Range

Mean Well RSP-150-27 SMPSU 27V 5.6A 151W Enclosure with protection features

Mean Well
Order Code:

05-1579

Brand: Mean Well MPN: RSP-150-27 EAN-13: 4021087014236
Qty Unit Price (Ex VAT)
1+ £27.34
5+ £26.52
10+ £25.69
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The Mean Well RSP-150-27 is a PCB mount SMPSU designed to deliver a stable output of 27 V DC at 5.6 A, with a total power capacity of 151 W. It features screw terminals and solder lugs for secure and reliable connections. This power supply unit is typically used in industrial and electronic equipment applications where consistent voltage and current are required.
Output Voltage 27 V DC
Connection Screw terminal
Dim (L x W x H) 199.00 x 99.00 x 30.00 mm
Height 30.00mm
Input voltage (max.) 264V AC
Length 199.00mm
Max. output current 5.6A
Min. input voltage 90V AC
Misc Attribute 1 Synchronised
Misc Attribute 3 closed
Number of Inputs 1
Number of Outputs 1
Output current (details) 5.6 A
Output current (max.) - rounded 5.6A
Output current (min.) 0A
Output voltage (max.) 27V DC
Output voltage (min.) 27V DC
Power 151W
Type SMPSU
Width 99.00mm
