Mean Well RSDW08G-15 DC/DC converter 530mA 8W single output module

Mean Well
Standard range
Order Code:

05-1551

Brand: Mean Well MPN: RSDW08G-15
Qty Unit Price (Ex VAT)
1+ £16.48
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

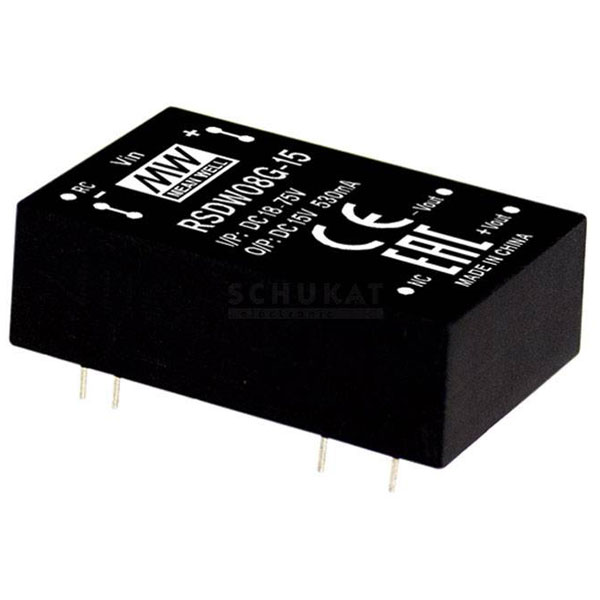

The Mean Well RSDW08G-15 is a DC/DC converter module with a current rating of 530 mA and a power output of 8 W. It features a single output, making it suitable for applications requiring efficient power conversion. Typical applications include industrial automation systems and telecommunications equipment where stable direct current voltage is needed.
Type DC/DC converter (module)
Connection Pins
Dim (L x W x H) 31.8 x 20.3 x 10.2 mm
Efficiency (max.) 86%
Height 10.2mm
Input voltage (max.) 75V DC
Insulation voltage 1500V DC
Length 31.8mm
Max. output current 530mA
Min. input voltage 18V DC
Misc Attribute RSDW08G-15
No. of outputs 1
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 530mA
Output voltage (max.) 15V DC
Power 8W
PSU features DC-to-DC converter
RoHS-compliant Yes
Weight 18.4g
Width 20.3mm
