Mean Well RPS-45-24 SMPSU 24V DC 2.1A 45.6W 1 pc

Mean Well
Order Code:

05-1469

Brand: Mean Well MPN: RPS-45-24 EAN-13: 4021087033824
Qty Unit Price (Ex VAT)
1+ £14.69
5+ £14.24
10+ £13.80
25+ £13.36
50+ £12.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

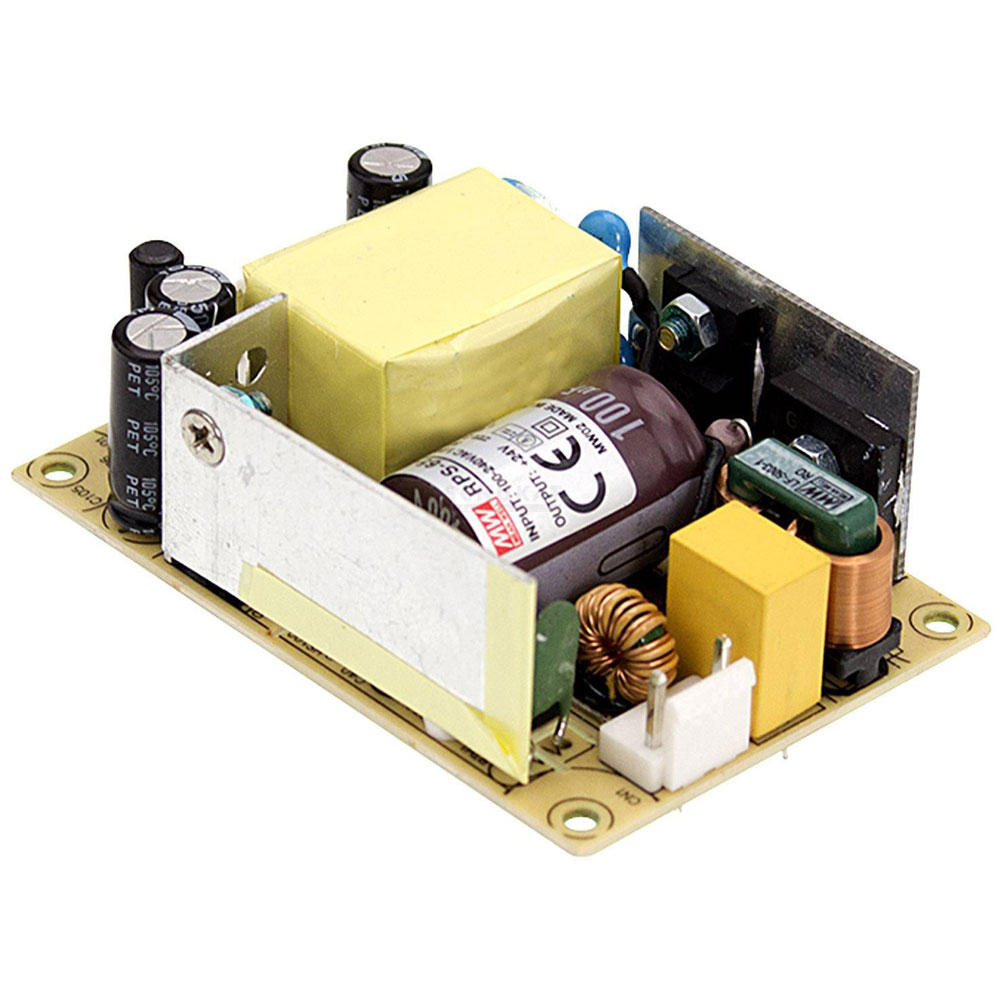

The Mean Well RPS-45-24 is a printed circuit board power supply unit (PCB PSU) with a voltage rating of 24 V DC and a current rating of 2.1 A, delivering 45.6 W of power. It features a compact design with solder lugs and is suitable for PCB mounting, making it ideal for a wide range of electronic applications. Typical applications include industrial equipment, telecommunications, and consumer electronics.
Type SMPSU
Connection Pin strip for nylon crimp connectors
Dim (L x W x H) 76.2 x 50.8 x 24 mm
Height 24mm
Input voltage (max.) 264V AC
Length 76.2mm
Max. output current 2.1A
Max. temperature +70°C
Min. input voltage 80V AC
Min. temperature -30°C
Misc Attribute 2 Pulsed
Misc Attribute 3 open
MTBF 726200h
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 2.1A
Output voltage (max.) 24V DC
PFC No
Power 45.6W
PSU features Adjustable voltage output
Width 50.8mm
