Mean Well RPS-400-24 SMPSU 24V DC 16.7A 400.8W medical grade power supply

Mean Well
Order Code:

05-1464

Brand: Mean Well MPN: RPS-400-24 EAN-13: 4021087034005
Qty Unit Price (Ex VAT)
1+ £92.76
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 15/12/2025

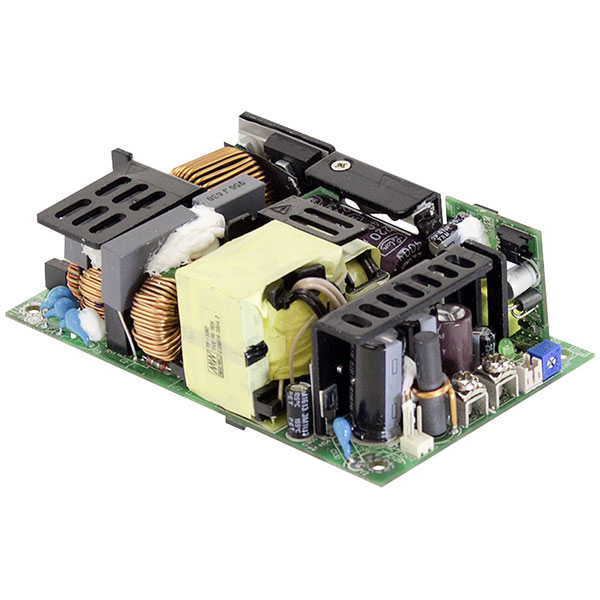

The Mean Well RPS-400-24 is a printed circuit board power supply unit that provides a 24 V DC output with a current rating of 16.7 A and a power output of 400.8 W. This PSU is suitable for PCB mount applications and is equipped with solder lugs for easy installation. It is commonly used in industrial and commercial equipment requiring reliable and efficient power supply solutions.
Type SMPSU
Connection Pin strip for nylon crimp connectors
Dim (L x W x H) 127 x 76.2 x 35 mm
Height 35mm
Length 127mm
Max. output current 16.7A
Max. temperature +70°C
Min. temperature -30°C
Misc Attribute 2 Pulsed
Misc Attribute 3 open
MTBF 194100h
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 16.7A
Output voltage (max.) 24V DC
PFC Yes
Width 76.2mm
