Mean Well RPS-120S-48 Series SMPSU 48V DC 2.5A 120W 1 pc

Mean Well
Order Code:

05-1453

Brand: Mean Well MPN: RPS-120S-48 EAN-13: 4021087052177
Qty Unit Price (Ex VAT)
1+ £34.05
5+ £32.17
10+ £30.64
25+ £28.94
50+ £27.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

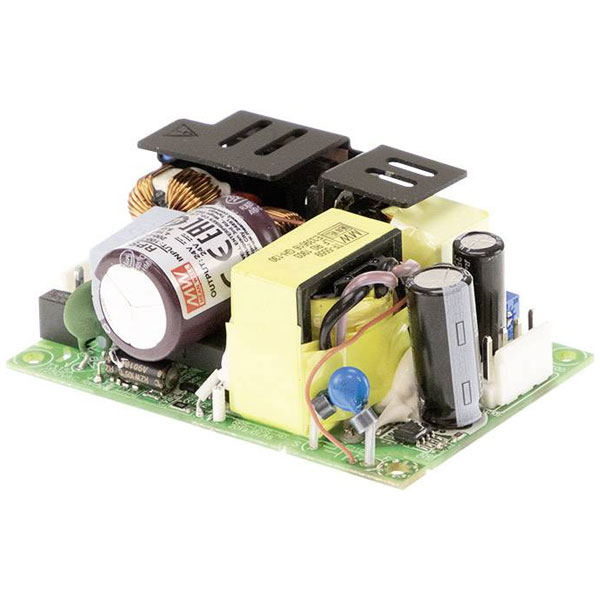

Mean Well's RPS-120S-48 is a 48 V DC SMPSU that delivers 2.5 A with a total power output of 120 W. It is designed for mounting on a printed circuit board and features solder lugs for easy connectivity. This power supply unit is commonly used in various electronic applications requiring reliable power management on a circuit board.
Type SMPSU
Connection Pin strip for nylon crimp connectors
Dim (L x W x H) 76.2 x 50.8 x 28 mm
Height 28mm
Length 76.2mm
Max. output current 2.5A
Max. temperature +85°C
Min. temperature -30°C
Misc Attribute 2 Pulsed
Misc Attribute 3 open
MTBF 468000h
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 2.5A
Output voltage (max.) 48V DC
PFC Yes
Power 120W
Width 50.8mm
