Mean Well RDDW10H-05 DC/DC converter 10W 2 outputs 1A 1 piece

Mean Well
Order Code:

05-1430

Brand: Mean Well MPN: RDDW10H-05 EAN-13: 4021087048644
Qty Unit Price (Ex VAT)
1+ £21.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 24/04/2026

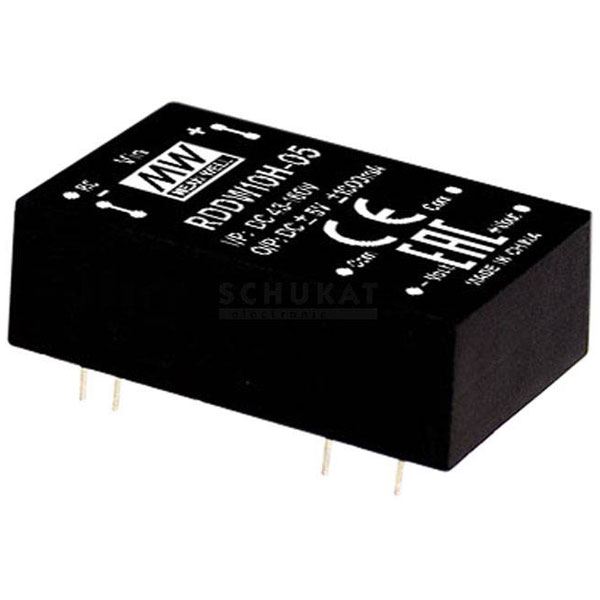

The Mean Well RDDW10H-05 is a DC/DC converter designed to provide two outputs with a total power of 10 watts and a current rating of 1 ampere. This converter is used typically in applications requiring the conversion of direct current voltages, such as power supplies for communication and industrial equipment. Key features include its dual-output capability, making it suitable for complex systems needing multiple voltage rails.
Output Voltage 5V DC
Input Voltage Range 160V DC
Power Rating 10W
Output Current 1A
Connection Pins
Dim (L x W x H) 31.8 x 20.3 x 12.7 mm
Efficiency (max.) 85%
Height 12.7mm
Insulation Voltage 3000V DC
Length 31.8mm
Max. output current 1A
Min. input voltage 43V DC
Number of Outputs 2
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Power 10W
PSU features DC-to-DC converter
Type DC/DC converter
Width 20.3mm
