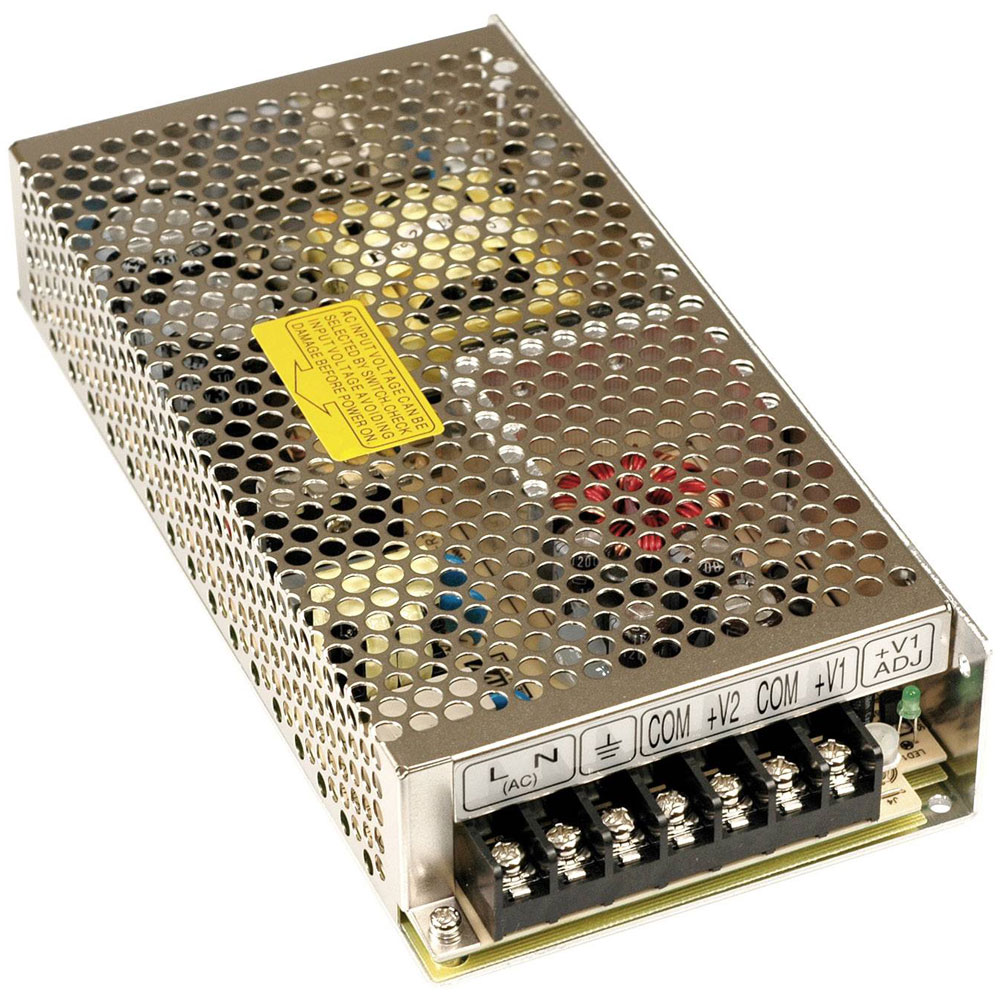

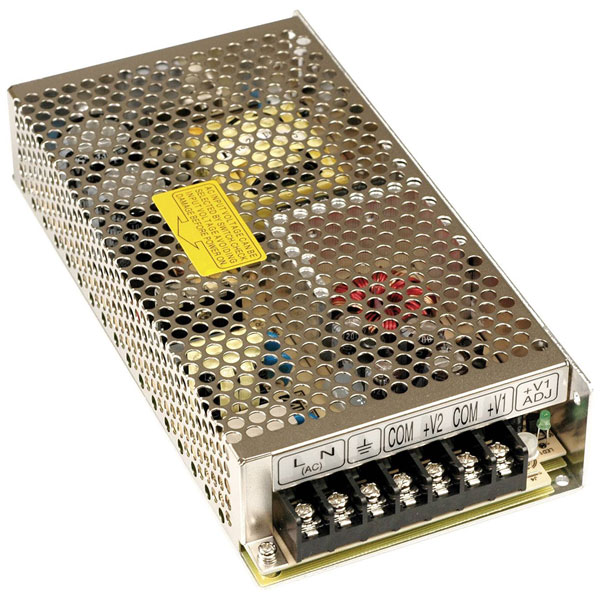

Mean Well RD-125-1224 SMPSU 133 W Enclosed case dual voltage protections

Mean Well
Standard range
Order Code:

05-1418

Brand: Mean Well MPN: RD-125-1224
Qty Unit Price (Ex VAT)
1+ £20.90
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
29 in stock, despatched in 4 working days

The Mean Well RD-125-1224 is a 133 W switched-mode power supply unit designed for mounting on printed circuit boards. It features dual outputs with voltage ratings of 12 V and 24 V, making it suitable for diverse industrial and electronic applications. The unit employs screw terminals for easy installation and secure connections.
Type SMPSU
Connection Screw terminal
Dim (L x W x H) 199.00 x 98.00 x 38.00 mm
Height 38.00mm
Input voltage (max.) 264V AC
Length 199.00mm
Min. input voltage 88V AC
Misc Attribute 1 Synchronised
Misc Attribute 2 RD-125-1224
Misc Attribute 3 closed
No. of inputs 1
No. of outputs 2
Output current (details) 1-7/0.4-5 A
Output voltage 12/+24 V/DC
Power 133W
Weight 700.00g
Width 98.00mm
