Mean Well PSC-100A-C power supply 13.8V 7A 100W charges batteries too

Name: Mean Well PSC-100A-C power supply 13.8V 7A 100W charges batteries too
Brand: Mean Well
Price: 43.77 GBP
Availability: InStock

Standard range

Order Code:

05-1365

Brand: Mean Well MPN: PSC-100A-C

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available
View Full Product Range (2)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£43.77

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

13 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

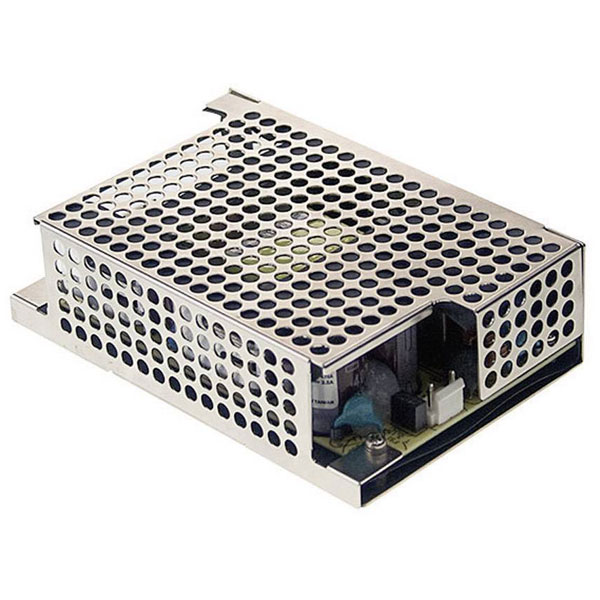

The Mean Well PSC-100A-C SMPSU is a printed circuit board power supply unit delivering 13.8 V DC at 7 A with a power output of 100 W. This unit is equipped with screw terminals and solder lugs, making it ideal for PCB mounting. It is commonly used in applications requiring reliable and stable power supply to electronic devices.

Type	SMPSU
Connection	Screw terminal
Dim	(L x W x H) 127 x 76.2 x 31 mm
Height	31mm
Input Voltage	90 - 264 V/AC 127 - 370V DC
Input voltage (max.)	264V AC
Inputs	1
Length	127mm
Max. output current	7A
Min. input voltage	90V AC
Misc Attribute 1	Switched Mode
Misc Attribute 2	PSC-100A-C
Misc Attribute 3	closed
No. of outputs	2
Output current (max.) - rounded	7A
Output current 1	4.75A
Output Current 2	2.5A
Output current 2 (max.)	2.5A
Output voltage (max.)	13.8V DC
Output voltage 1	13.8V DC
Output voltage 2	13.8V DC
Output voltage 2 (max.)	13.8V DC
Power	100W
Weight	230g
Width	76.2mm
