Mean Well Open & DIN Power Supply Units AC/DC PSU (print) 608220

Mean Well Brand: Mean Well
Mean Well power supplies are medical grade AC/DC PSUs designed for various voltage and current outputs, suitable for medical devices and compliant with IEC/EN 60601-1 standards.
Description Image Product Buy Pricing (Ex VAT) Efficiency to Max. output current Output current (max.) - rounded Output Current 1 Output voltage (max.) Output Voltage 1 Power Residual ripple Connection Dim Height Input Frequency Input voltage (max.) Length Min. input voltage Misc Attribute 2 Number of Outputs Operating temperature (max.) Operating temperature (min.) Protection Class

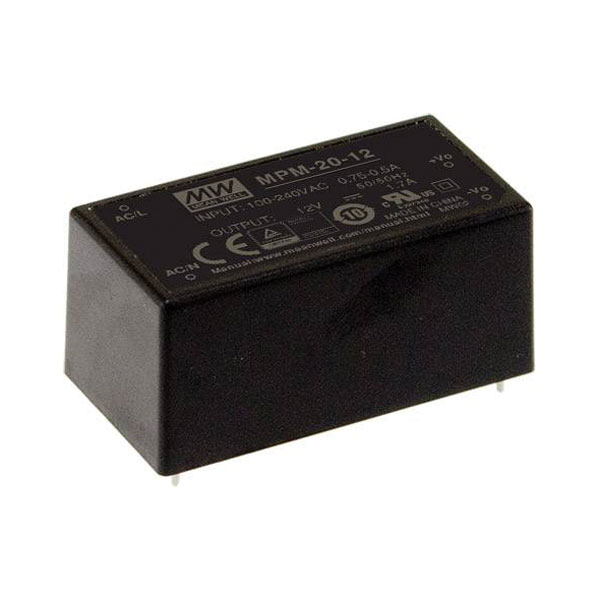

Mean Well MPM-20-15 MPM series AC/DC PSU 15V DC 1.4A for medical devices
Mean Well MPM-20-15 MPM series AC/DC PSU 15V DC 1.4A for medical devices
Standard range
Order code: 05-1173
MPN: MPM-20-15

Available to back orderBack-order availability date - 13/12/2025
1+ £12.71
5+ £12.33
10+ £11.95
25+ £11.58
Price per unit Ex VAT 		87% 1.4A 1.4A 1.4A 15V DC 15V DC 21W 180 mVpp Pins (L x W x H) 52.4 x 27.2 x 24 mm 24mm 47-440Hz 264V AC 52.4mm 80V AC Pulsed 1 +85°C -35°C II
Mean Well MPM-20-3.3 MPM series AC/DC PSU 3.3V DC 4.5A 14.9W for medical use
Mean Well MPM-20-3.3 MPM series AC/DC PSU 3.3V DC 4.5A 14.9W for medical use
Extended range
Order code: 05-1175
MPN: MPM-20-3.3

196 available to back orderBack-order availability date - 14/12/2025
1+ £16.31
5+ £15.83
10+ £15.33
25+ £14.85
50+ £14.35
Price per unit Ex VAT 		81% 4.5A 4.5A 4.5A 3.3V DC 3,3V DC 14.9W 150 mVpp Pins (L x W x H) 52.4 x 27.2 x 24 mm 24mm 47-440Hz 264V AC 52.4mm 80V AC Pulsed 1 +85°C -35°C II
