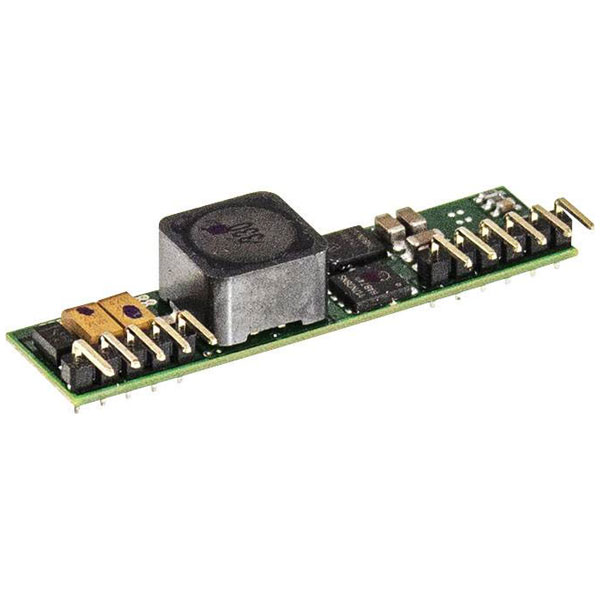

Mean Well NID35-12 converter 2.9 A 34.8 W single output 1 pc

Mean Well
Standard range
Order Code:

05-1265

Brand: Mean Well MPN: NID35-12
Qty Unit Price (Ex VAT)
1+ £9.80
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
73 in stock, despatched in 4 working days

The Mean Well NID35-12 is a DC/DC converter with a 2.9 A current rating and a power output of 34.8 W. It features a single output, making it suitable for applications requiring stable voltage conversion in electronic systems. Typical uses include power supply regulation in telecommunications, industrial controls, and portable equipment.
Type DC/DC converter
Connection Pins
Dim (L x W x H) 50.8 x 13 x 11 mm
Efficiency (max.) 95%
Height 11mm
Input voltage (max.) 53V DC
Length 50.8mm
Max. output current 2.9A
Min. input voltage 20V DC
Misc Attribute NID35-12
No. of outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 2.9A
Output voltage (max.) 12V DC
Power 34.8W
PSU features DC-to-DC converter
Weight 9g
Width 13mm
