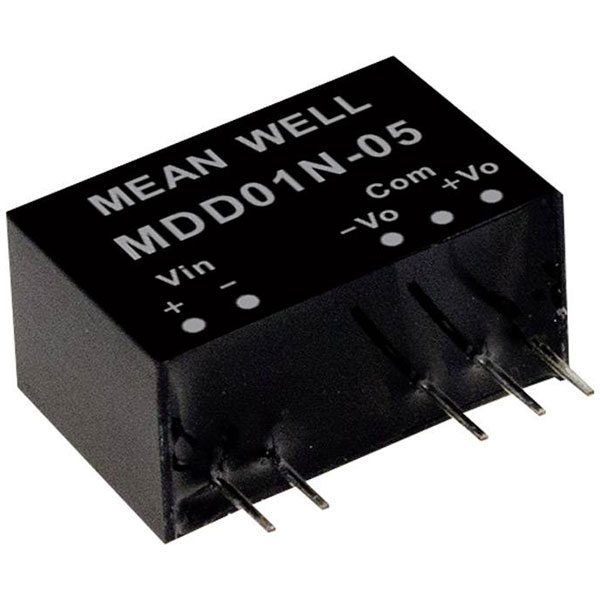

Mean Well MDD01N-05 dc/dc converter 1W 100mA 2 outputs 1pc -40 to +85°C

Mean Well
Order Code:

05-1098

Brand: Mean Well MPN: MDD01N-05 EAN-13: 4021087043281
Qty Was Unit Price (Ex VAT)
1+ £6.31 £4.53
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

Mean Well manufactures the MDD01N-05, a DC/DC converter module with a current rating of 100 mA and a power output of 1 W. This module features two outputs and is designed for applications requiring efficient voltage conversion. It is suitable for use in electronic systems where space-saving power management is essential.
Connection Pins
Dim (L x W x H) 19.5 x 9.8 x 12.5 mm
Efficiency (max.) 77%
Height 12.5mm
Input voltage (max.) 26.4V DC
Length 19.5mm
Max. output current 100mA
Min. input voltage 21.6V DC
Number of Outputs 2
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 100mA
Output current (min.) 10mA
Power 1W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 9.8mm
