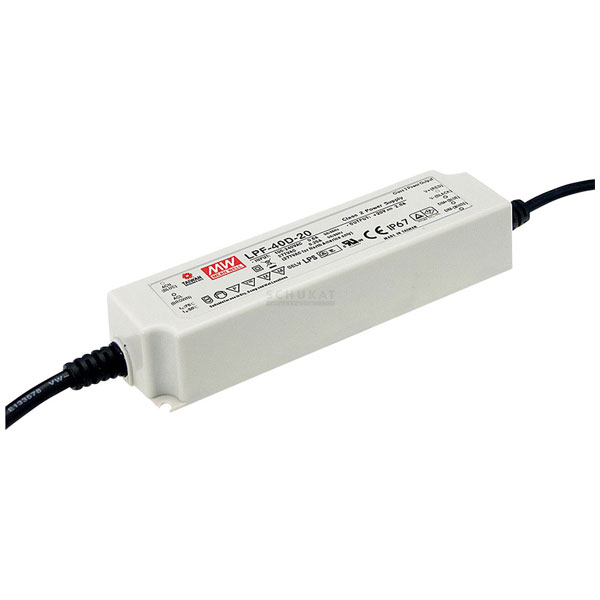

Mean Well LPF-40D-42 LED driver 40W 0.96A 25.2-42V DC IP67 dimmable

Mean Well
Order Code:

05-1032

Brand: Mean Well MPN: LPF-40D-42 EAN-13: 4021087007481
Qty Unit Price (Ex VAT)
1+ £34.00
5+ £33.15
10+ £32.30
25+ £30.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well LPF-40D-42 is a dimmable LED driver with a constant current of 0.96 A and voltage range of 25.2-42 V DC. It features power factor correction and surge protection, delivering a maximum of 40 W output. This device is ideal for powering LED strips and lighting applications, ensuring efficient and reliable performance.
Type LED driver
Connection Open end cable
Dim (L x W x H) 162.50 x 43.50 x 32.00 mm
Height 32.00mm
Input voltage (max.) 277V AC
IP Rating IP67
Length 162.50mm
Max. output current 0.96A
Max. power 40W
Min. input voltage 90V AC
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 960mA
Output voltage (max.) 42V DC
Output voltage (min.) 25.2V DC
Power range 40 W (max)
Protection Class II
Width 43.50mm
