Mean Well LED Drivers LED driver 608163

Mean Well Brand: Mean Well
The Mean Well ELGC-300 series comprises robust, outdoor-use LED drivers known for their dimmable capabilities and efficient power factor correction, exemplified by models such as the ELGC-300-H-AB, ELGC-300-L-AB
Description Image Product Buy Pricing (Ex VAT) Max. output current Output current (max.) - rounded Output current (min.) Output voltage (max.) Output voltage (min.) Test mark Type Connection Dim Factory colour Height IP Rating Length Max. power Max. temperature Min. temperature Misc Attribute 1 Misc Attribute 2 Number of Inputs Number of Outputs

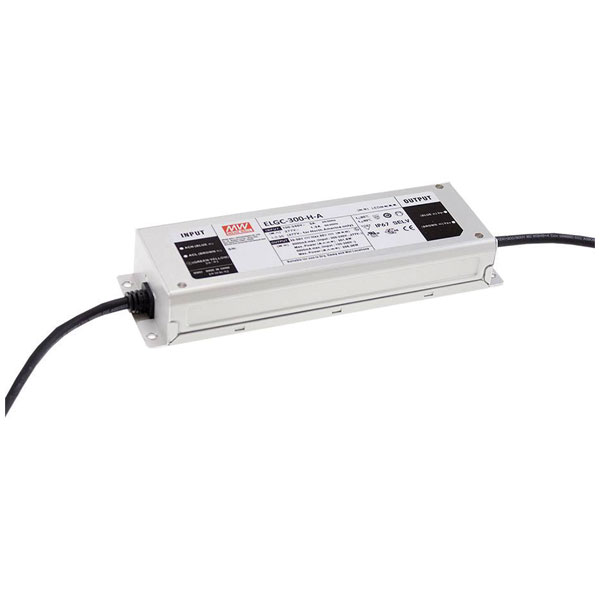

Mean Well ELGC-300-H-AB LED driver 301.6W dimmable outdoor with PFC
Mean Well ELGC-300-H-AB LED driver 301.6W dimmable outdoor with PFC
Standard range
Order code: 05-0523
MPN: ELGC-300-H-AB

Available to back orderBack-order availability date - 12/12/2025
1+ £71.05
Price per unit Ex VAT 		8A 8A 5.2A 58V DC 28V DC SELV, ENEC, CB, CE LED driver Open end cable (L x W x H) 246 x 77 x 39.5 mm Metal 39.5mm IP67 246mm 301.6W +85°C -40°C Constant power Pulsed 1 1
Mean Well ELGC-300-L-AB LED driver 301.6W dimmable outdoor use
Mean Well ELGC-300-L-AB LED driver 301.6W dimmable outdoor use
Standard range
Order code: 05-0524
MPN: ELGC-300-L-AB

Available to back orderBack-order availability date - 12/12/2025
1+ £71.05
Price per unit Ex VAT 		2A 2A 1.3A 232V DC 116V DC ENEC, CB, CE LED driver Open end cable (L x W x H) 246 x 77 x 39.5 mm Metal 39.5mm IP67 246mm 301.6W +85°C -40°C Constant power Pulsed 1 1
Mean Well ELGC-300-M-AB LED driver 301.6W dimmable outdoor use
Mean Well ELGC-300-M-AB LED driver 301.6W dimmable outdoor use
Standard range
Order code: 05-0526
MPN: ELGC-300-M-AB

Available to back orderBack-order availability date - 12/12/2025
1+ £71.05
Price per unit Ex VAT 		4A 4A 1.3A 116V DC 58V DC SELV, ENEC, CB, CE LED driver Open end cable (L x W x H) 246 x 77 x 39.5 mm Metal 39.5mm IP67 246mm 301.6W +85°C -40°C Constant power Pulsed 1 1
