Mean Well IRM-01-9 PSU 9V DC 111mA 1W compact low power consumption

Mean Well
Order Code:

05-0913

Brand: Mean Well MPN: IRM-01-9 EAN-13: 4021087034760
Qty Unit Price (Ex VAT)
1+ £5.71
5+ £5.56
10+ £5.37
25+ £5.29
50+ £5.21
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

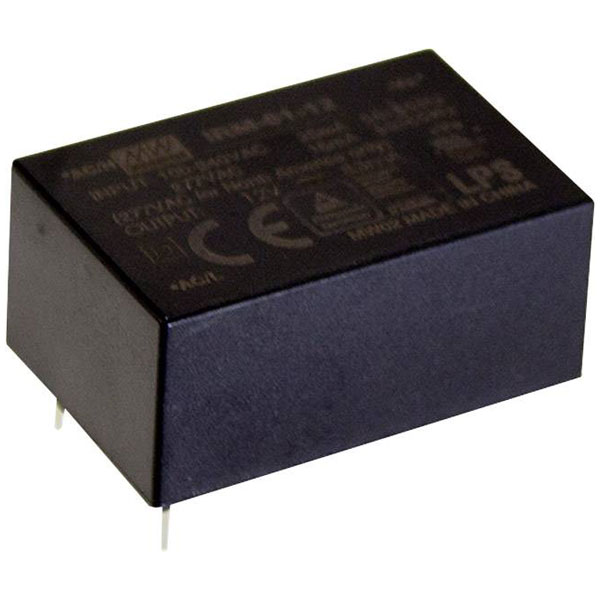

The Mean Well IRM-01-9 is a PCB-mounted AC/DC power supply unit with a 9 V DC output and a 111 mA current rating. It is ideal for circuit board equipping and applications requiring compact power solutions. Suitable for use in various electronic devices, this PSU comes with solder lugs for easy installation.
Connection Pins
Consumption (standby) 75mW
Dim (L x W x H) 33.7 x 22.2 x 15 mm
Efficiency to 72%
Height 15mm
Input Frequency 47-63Hz
Input voltage (max.) 305V AC
Length 33.7mm
Max. output current 111mA
Min. input voltage 85V AC
Number of Outputs 1
Operating Temperature -30°C to +85°C
Operating temperature (max.) +85°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 111mA
Output voltage (max.) 9V DC
Power 1W
Protection Class II
Residual ripple 150 mVp-p
Tolerance (output voltage) ±2.5%
Type AC/DC PSU (print)
Width 22.2mm
